AP-1000

NOMO APOLLO semi-integrated solar street light is an innovative product, designed for high lumen requirements. The adjustable angle of solar panel can maximum absorb the sunlight.Different from similar lights in the market, we add a solar panel on the lamp too, which could longer the working time after a full charge, and the unique adjustable mounting bracket can light the area as needed.

SPECIFICATION

Lighting

Light output 3000LM-5000LM
LED Chip 3030
CCT 2700-6000K  ( can be customized)
Life Span 100,000 hours to LM80 specifications
Working Way Motion Sensor/IOT/Time Schedule

Solar Panel

Power of PV module 80W
Life Span 25 years

Storage

Battery Capacity 200WH
Autonomy 2-3 days
Life Span 4000 cycles ( 10 years)

Charging Controller

Life Span >12years

Mechanical Specifications

Recommened Pole Height 5m-6m
Recommended Top diameter of the Pole 15-20mm
Product  Dimension (mm) solar panel:666*1000*35
lighting fixture:559*182*62

Environment

Working Temperature ‘-15°C to +70°C
Water Resistance IP65
Download Specsheet

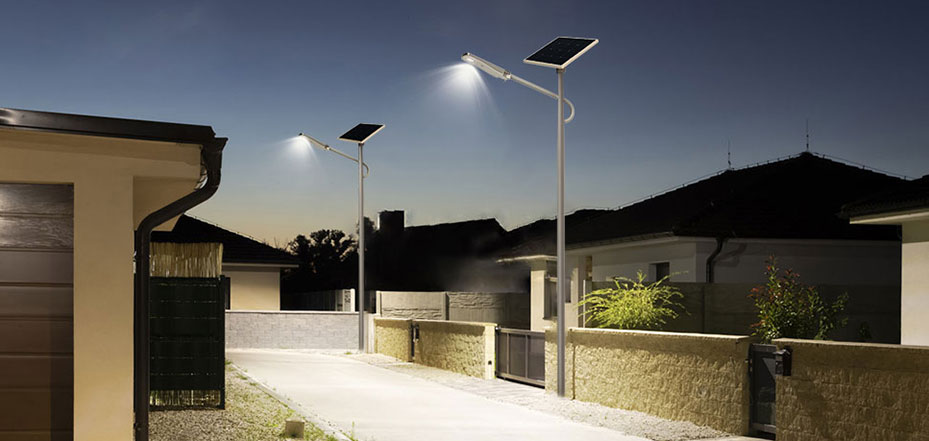

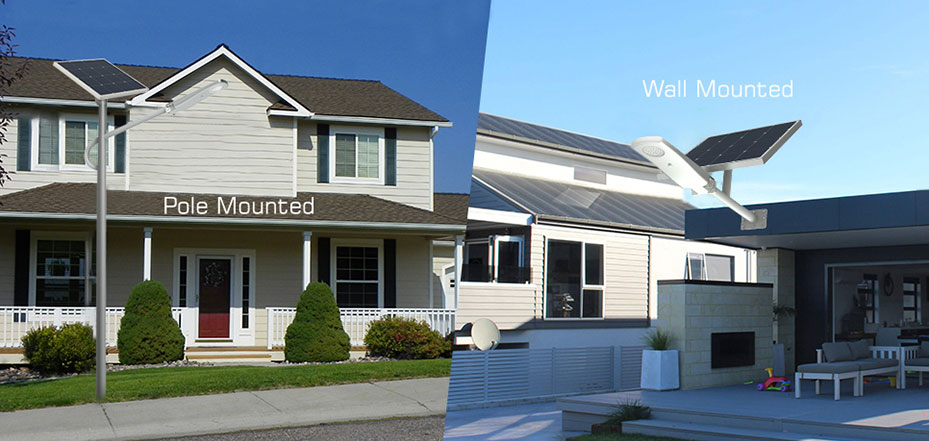

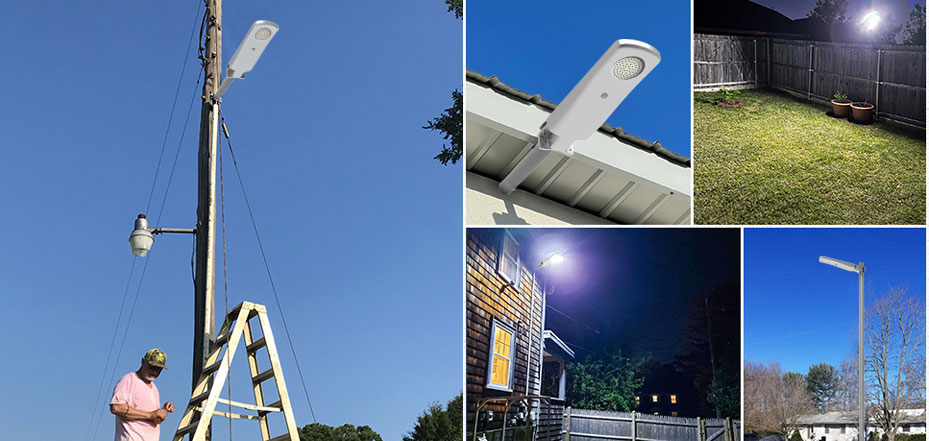

APPLICATIONS

AP-1000
AP-1000
AP-1000
AP-1000
AP-1000

FUNCTION INTRODUCTION

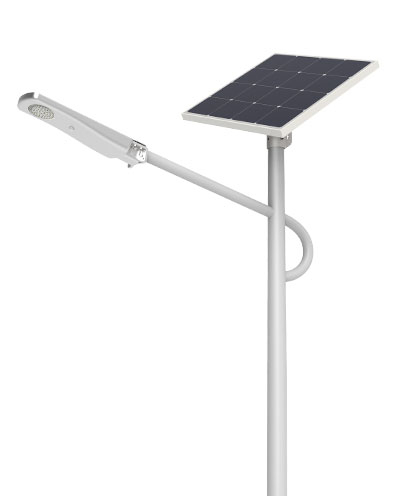

AP-5000

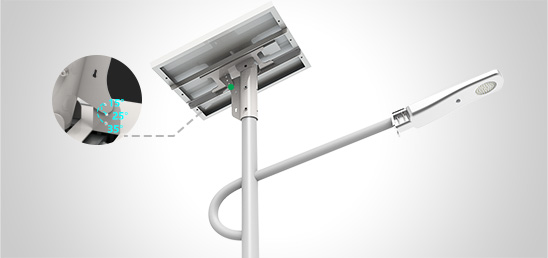

Angle Adjustable bracket 15° / 25° / 35° for option

High efficiency soalr panel(24% efficiency)
