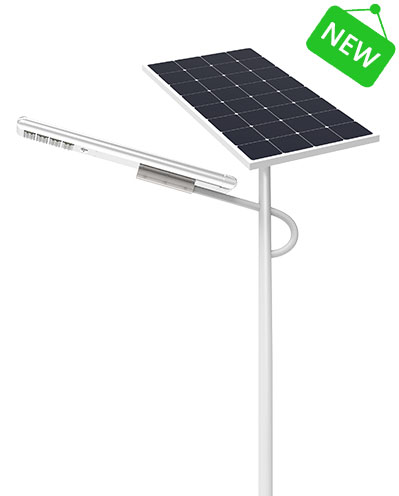

NAP-160W

SPECIFICATION

Mode NO. NAP-160
Lighting
Light Output 8000-12064LM
LED Chip High bright 5050
CCT 2700-6000K(can be customied)
Life Span 100,000 hours to LM80 specifications
Working Way Motion Sensor / IoT / Time Schedule
Solar Panel
Power of PV module 250W
Lifespan 80% power after 25 years
Storage
Battery Capacity 1536WH
Life Span 4000 Cycles (>10 years)
Charging Controller
Life Span >12 years
Working Mode MPPT
Control Mode Intelligent, activated by sunlight
Environment
Working Temperature -15°C to +70°C
Water Resistance IP65
Mechanical Specifications
Recommended Top diameter of the Pole 76mm
Recommended Pole Height 10m-12m
Net Weight 30Kg
Download Specsheet

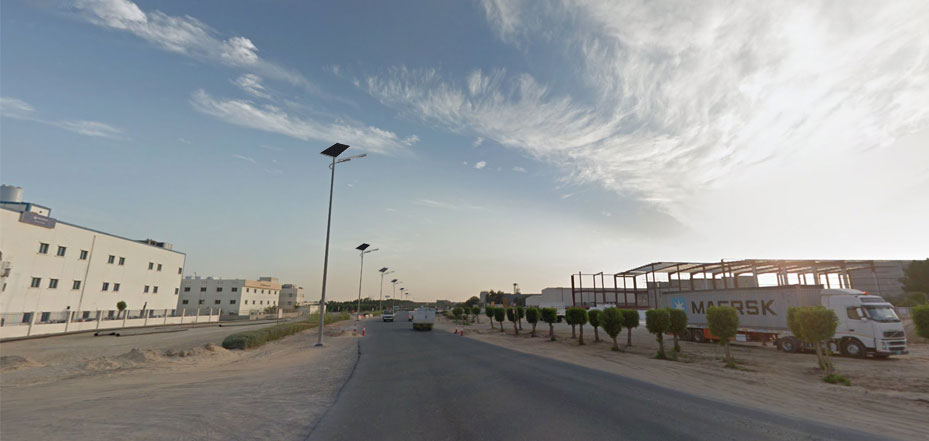

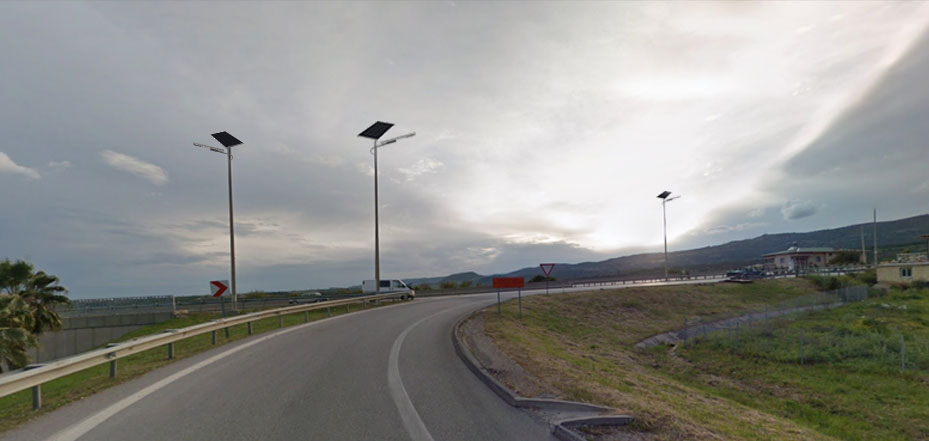

APPLICATIONS

NAP-160W
NAP-160W

FUNCTION INTRODUCTION
