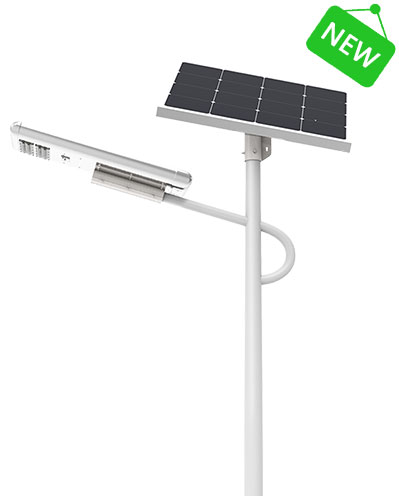

NAP-80W

SPECIFICATION

Mode NO. NAP-80
Lighting
Light Output 3000-4200LM
LED Chip High bright 5050
CCT 2700-6000K(can be customied)
Life Span 100,000 hours to LM80 specifications
Working Way Motion Sensor / IoT / Time Schedule
Solar Panel
Power of PV module 130W
Lifespan 80% power after 25 years
Storage
Battery Capacity 768WH
Life Span 4000 Cycles (>10 years)
Charging Controller
Life Span >12 years
Working Mode MPPT
Control Mode Intelligent, activated by sunlight
Environment
Working Temperature -15°C to +70°C
Water Resistance IP65
Mechanical Specifications
Recommended Top diameter of the Pole 76mm
Recommended Pole Height 7m-9m
Net Weight 21Kg
Download Specsheet

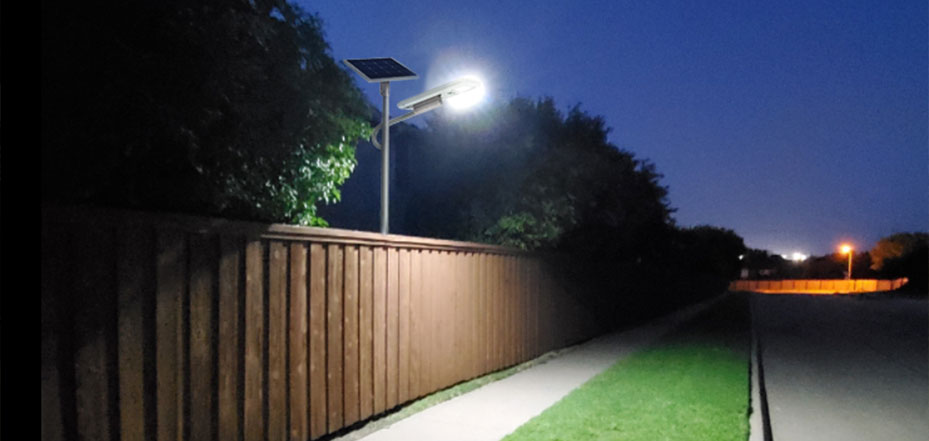

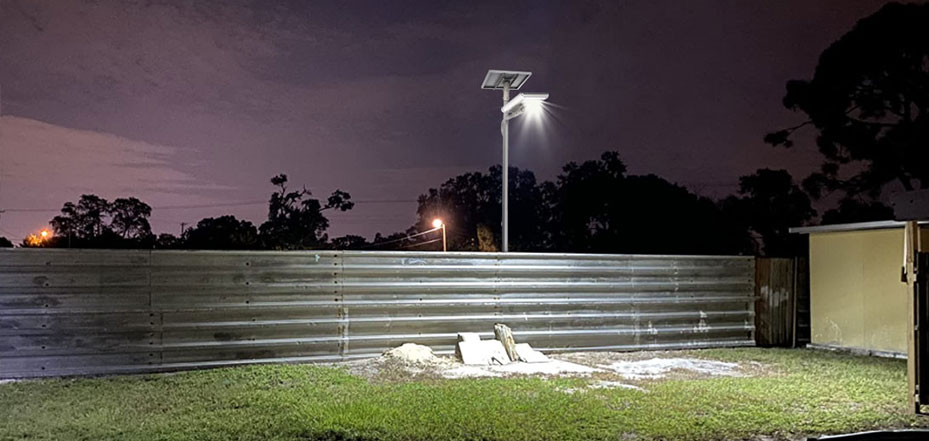

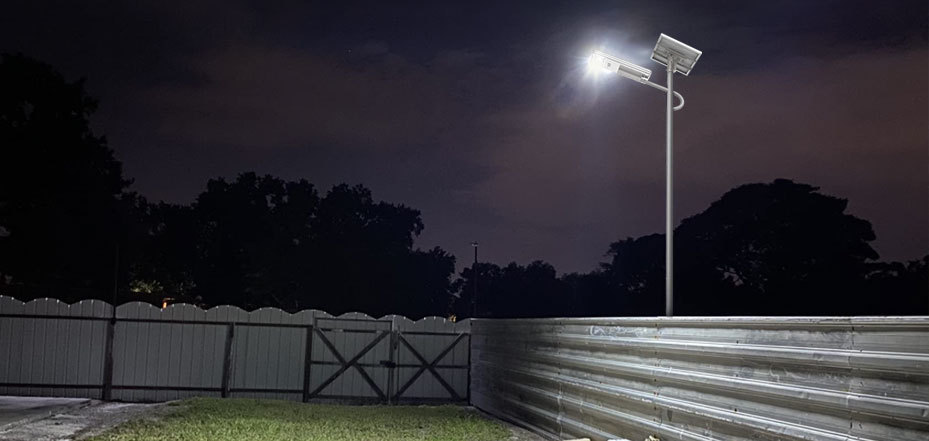

APPLICATIONS

NAP-80W
NAP-80W
NAP-80W

FUNCTION INTRODUCTION
