AT-10000

High Mast Light is preferred over conventional lighting, because it can achieve a larger space of height to ratios. NOMO’s ASTRO is newest high mast light, which has a mix of the improved latest technology on solar energy, LED lighting and IOT street lighting of an intelligent Data Transmitting Unit as well as a perfect new green environmental energy-saving protection. The uniqueness of this design has special sources that can be adjusted in any angle 360 degrees Azimuth and any direction where illumination is required.

SPECIFICATION

Mode NO. AT-10000
Lighting
light Output 10000LM
LED Chip High bright 5050
CCT 2700-6000K(can be customized)
Life Span 100,000 hours to LM80 specifications
Working Way Motion Sensor / IOT / Time Schedule
Solar Panel
Power of PV module 120W
Life Span 80% power after 25 years
Storage
Battery Capacity 825WH
Life Span 4000 Cycles (>10 years)
Charging Controller
Life Span >12 years
Working Mode MPPT
Control Mode Intelligent, activated by sunlight
Environment
Working Temperature -15°C to +70°C
Water Resistance IP65
Mechanical Specifications
Recommended Top diameter of the Pole 60mm
Recommended Pole Height 8m-10m
Download Specsheet

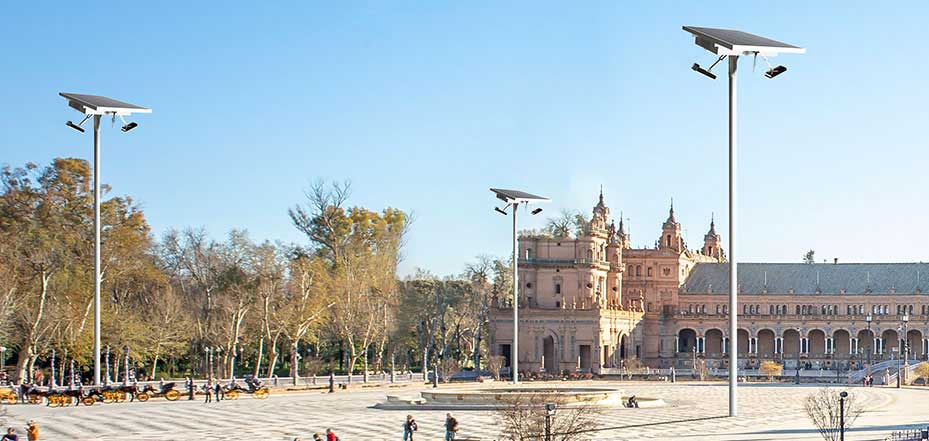

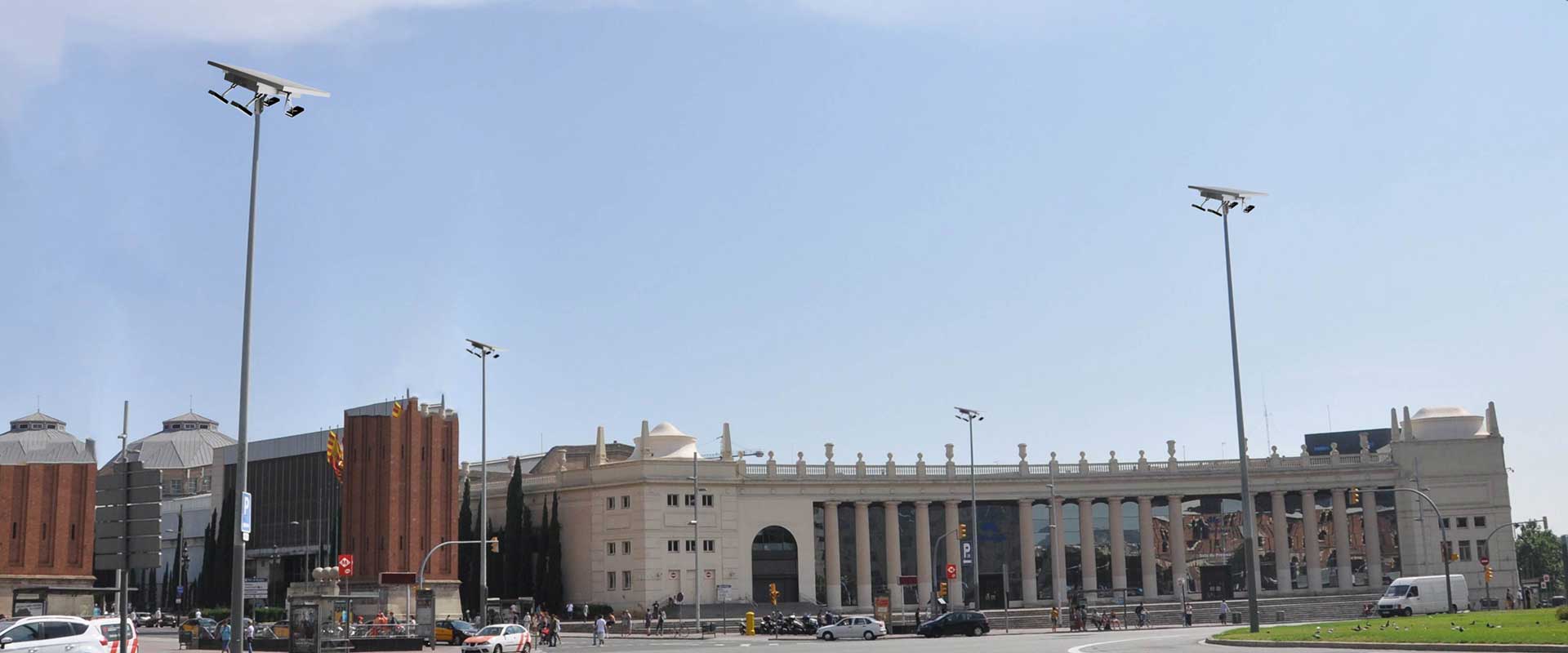

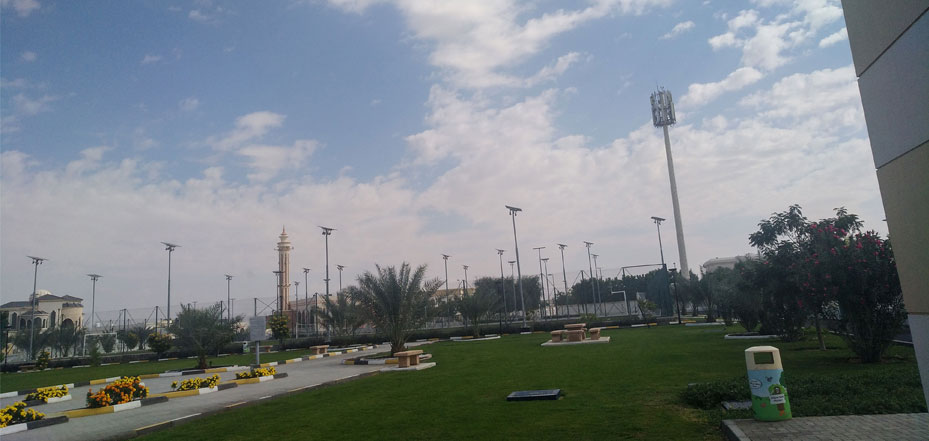

APPLICATIONS

AT-10000
AT-10000

FUNCTION INTRODUCTION

Astro

AT-10000

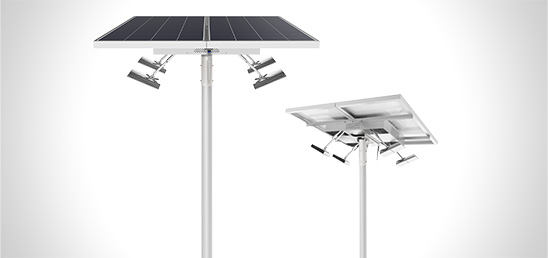

Astro-10000 is a multi-functional light, can be used as either integrated or split solar street light.

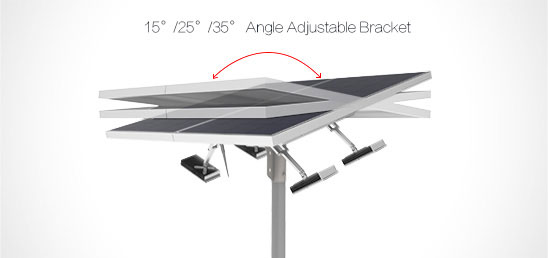

Tailstock

For catching maximum sunlight and meeting different lighting demands, Astrol has an adjustable tailstock, three degrees for option, 15 degrees, 25 degrees and 35 degrees.

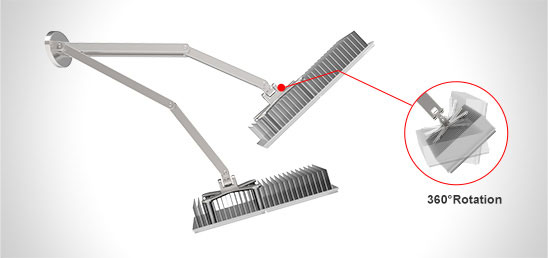

360° Rotation Lamp Head
