AT-20000

High Mast Light is preferred over conventional lighting, because it can achieve a larger space of height to ratios. NOMO’s ASTRO is newest high mast light, which has a mix of the improved latest technology on solar energy, LED lighting and IOT street lighting of an intelligent Data Transmitting Unit as well as a perfect new green environmental energy-saving protection. The uniqueness of this design has special sources that can be adjusted in any angle 360 degrees Azimuth and any direction where illumination is required.

Solar Panel200W
Maximum Light Output24000LM
Battery – TypeNewest-generation LIFEPO4 battery
Battery Capacity1100WH
Battery-Service Life8 Years at 70% DoD and at 45°ambient
Light Source-TypeHigh Efficiency LED
Light Head Lifetime100,000hours to LM80 specifications
Solar panel- Service Life25Years
Solar CellsVery High Efficiency- Proprietary Solar Cells
ControllerMicroprocessor based Energy Management and Wireless Communications
Recommended Pole Height<15m
Dimensions (L x W x H)740*600*110mm
Optional Temperature-15℃ to + 70℃
Protection RatingIP65
Wireless NetworkZigbee Proprietary Wireless Network allows Remote Management and Control of Lights using Internet or GSM.One gateway(DTU) per 200 lights and all the gateways report to a central control room.

Download Specsheet

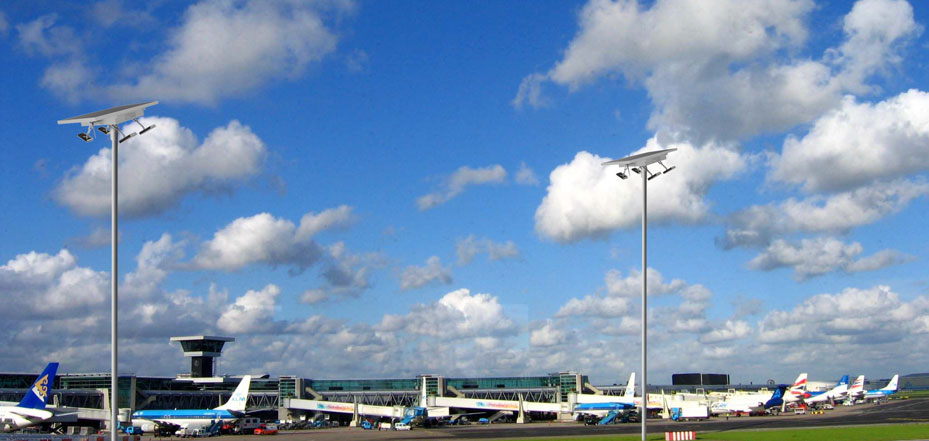

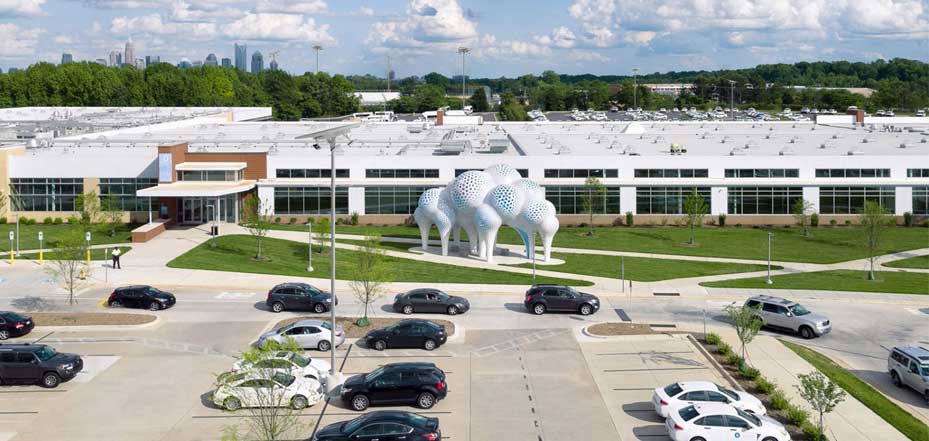

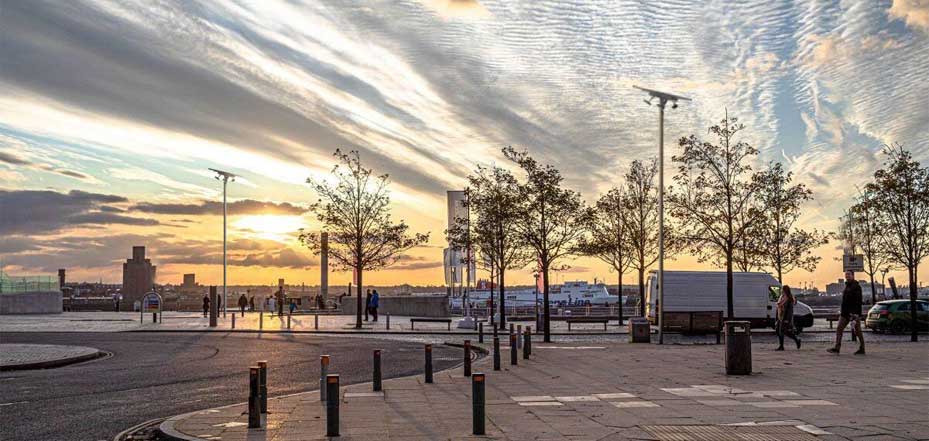

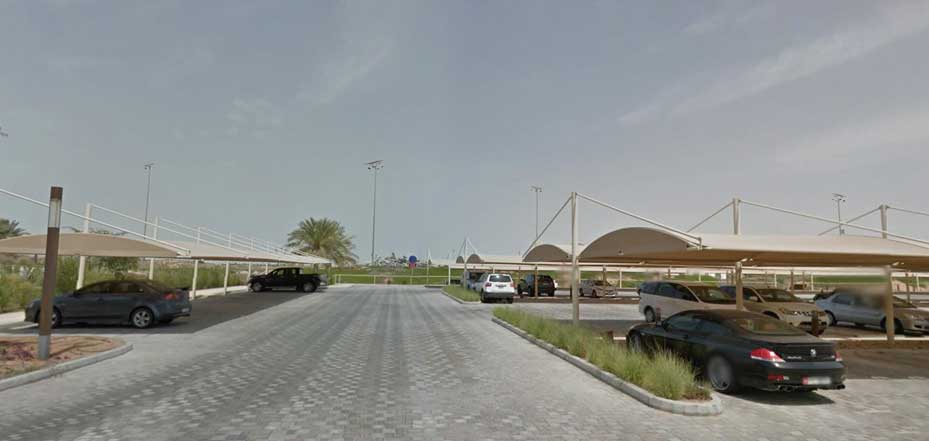

APPLICATIONS

AT-20000
AT-20000
AT-20000
AT-20000
AT-20000

FUNCTION INTORDUCTION

/>

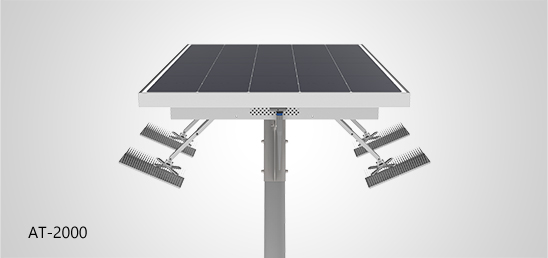

AT-20000

Astro-20000 is a multi-functional light, can be used as either integrated or split solar street light.

Tailstock

For catching maximum sunlight and meeting different lighting demands, Astrol has an adjustable tailstock, three degrees for option, 15 degrees, 25 degrees and 35 degrees.

360° Rotation Lamp Head
