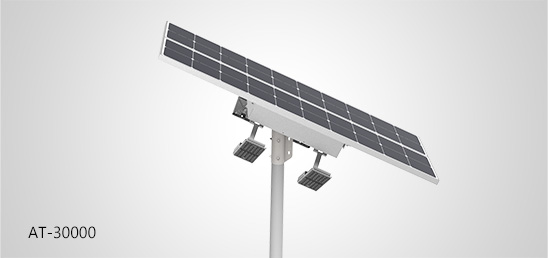

AT-30000

High Mast Light is preferred over conventional lighting, because it can achieve a larger space of height to ratios. NOMO’s ASTRO is newest high mast light, which has a mix of the improved latest technology on solar energy, LED lighting and IOT street lighting of an intelligent Data Transmitting Unit as well as a perfect new green environmental energy-saving protection. The uniqueness of this design has special sources that can be adjusted in any angle 360 degrees Azimuth and any direction where illumination is required.

Specifications AT-30000
Light Output 30000LM
Battery – Type Newest-generation LIFEPO4 battery
Battery Capacity 1800WH
Battery – Service Life 8 Years at 70% DoD and at 45º ambient
Light Source – Type High Efficiency LED, Colour Temperature WW 3200K;NW 4200K;CW 5500K (Customized)
Light Head Lifetime 100,000 hours to LM80 specifications
Solar Panel (W) 320W
Solar Panel – Service Life 25 Years
Solar Cells Very High Efficiency – Proprietary Solar Cells (Greater than 24%)
Controller Microprocessor based Energy Management and Wireless Communications
Recommended Pole Height <15m
Dimensions (L x W x H) 1307*1310*160mm
Operating Temperature -15ºC to +70ºC
Protection Rating IP65 Certificate
Wireless Network Zigbee Proprietary Wireless Network allows Remote Management and
Control of Lights using Internet or GSM. One gateway(DTU) per 200 lights and all the gateways report to a central control room.
Download Specsheet

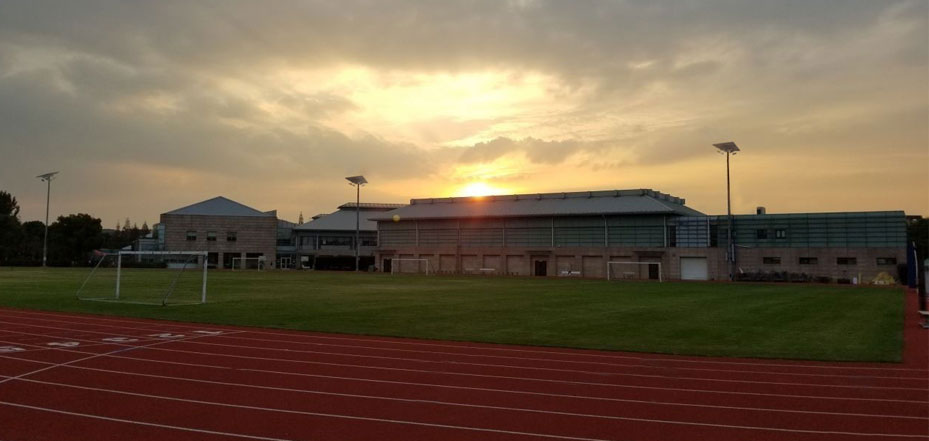

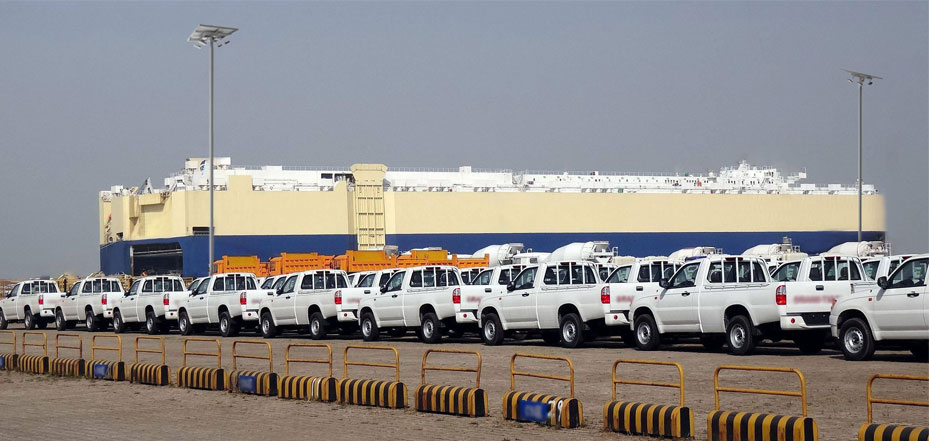

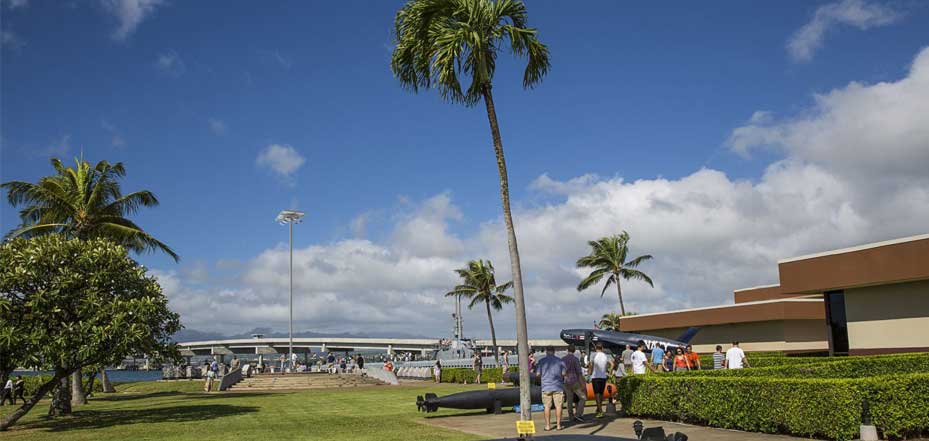

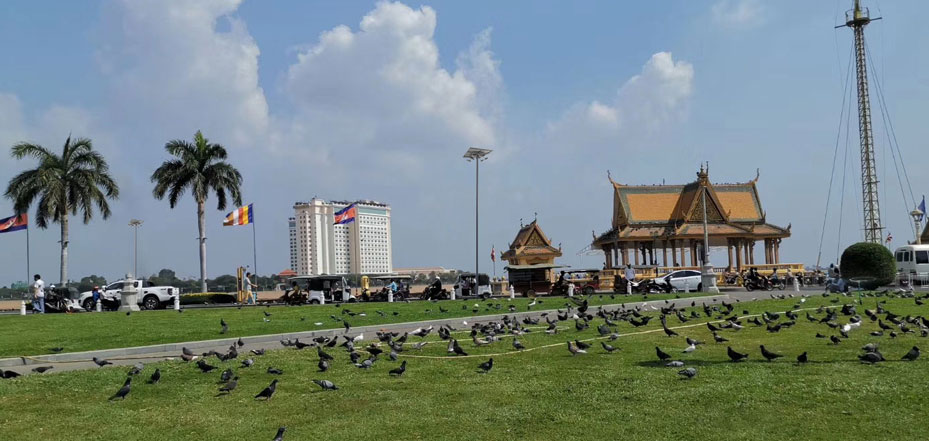

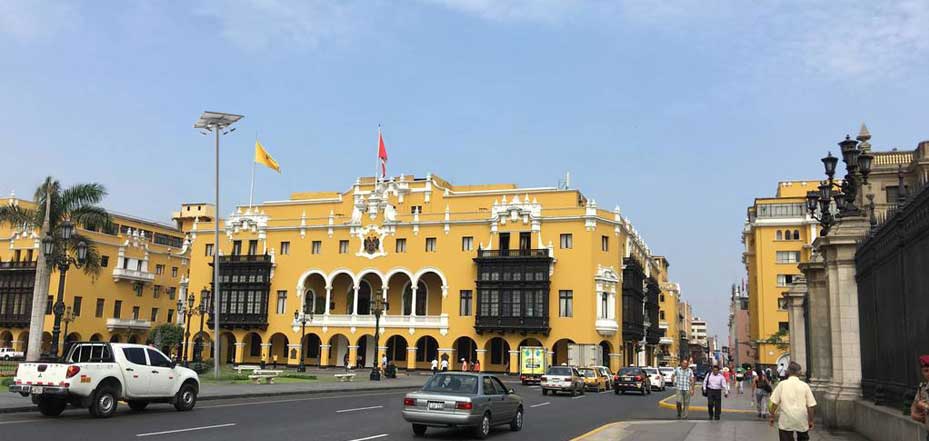

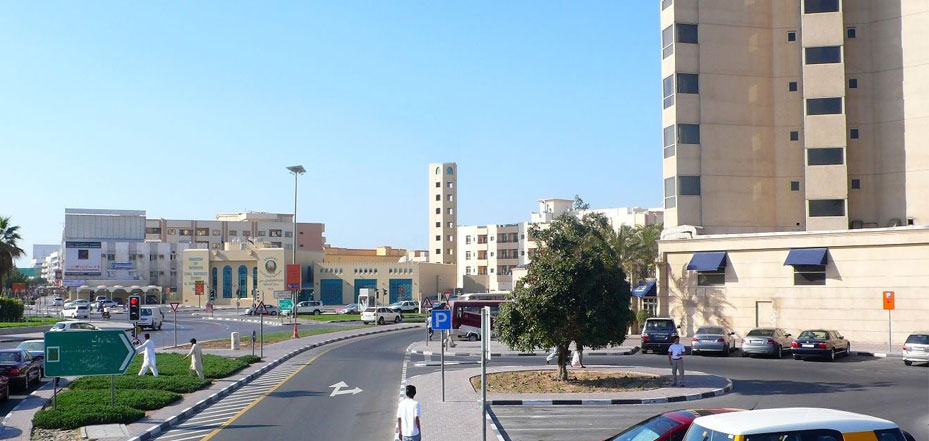

APPLICATIONS

AT-30000
AT-30000
AT-30000
AT-30000
AT-30000
AT-30000

FUNCTION INTORDUCTION

AT-30000

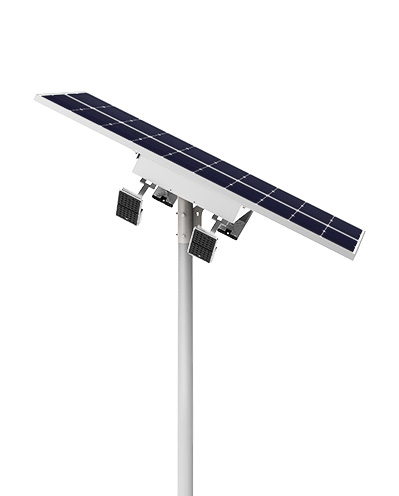

Astro-30000 is a multi-functional light, can be used as either integrated or split solar street light.

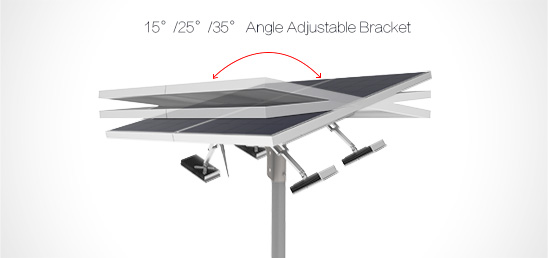

Tailstock

For catching maximum sunlight and meeting different lighting demands, Astrol has an adjustable tailstock, three degrees for option, 15 degrees, 25 degrees and 35 degrees.

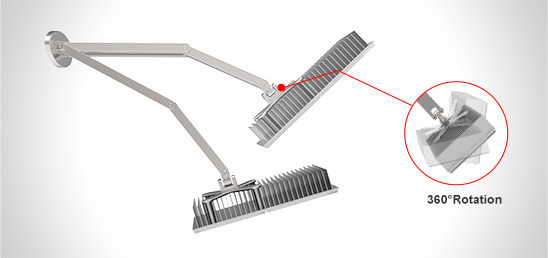

360° Rotation Lamp Head
