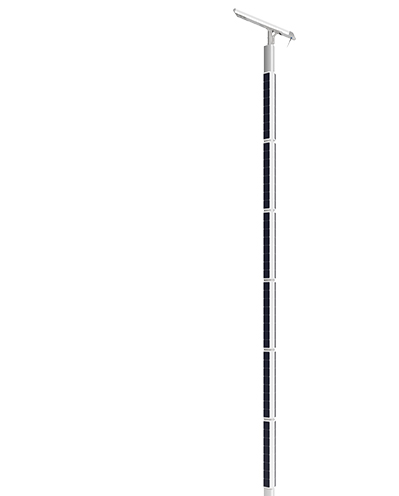

H10(HP-5000)

NOMO’s HELIOS displays a Highly Tall Standing, Uniquely Shaped form and well-designed Solar Street Pole light. Having Not only a first impression appearance (look), but a strong wind resistance that have light weight solar panels on top of the pole as well as a best performance to absorb directly sunlight from any angle during the day, with a performance of higher level operating reliability. Additionally it has more sophisticated technology that can prevent dust, snow bird poop, or any applications from garden and landscape issues, which often leads to reducing the generated power efficiency and also cause charge failure.

Specifications H10(HP-5000)
Light Output  24000LM
Battery – Type Newest-generation LIFEPO4 battery
Battery Capacity 2400WH
Battery – Service Life 8 Years at 70% DoD and at 45º ambient
Light Source – Type High Efficiency LED, Colour Temperature WW 3200K;NW 4200K;CW 5500K (Customized)
Light Head Lifetime 100,000 hours to LM80 specifications
Solar Panel (W) 480W
Solar Panel – Service Life 25 Years
Solar Cells Very High Efficiency – Proprietary Solar Cells (Greater than 24%)
Controller Microprocessor based Energy Management and Wireless Communications
Pole Height  10m
Dimensions (L x W x H) 10000*400*400mm
Operating Temperature -15ºC to +70ºC
Protection Rating IP65 Certificate
Wireless Network Zigbee Proprietary Wireless Network allows Remote Management and Control of Lights using Internet
or GSM. One gateway(DTU) per 200 lights and all the gateways report to a central control room.
Download Specsheet

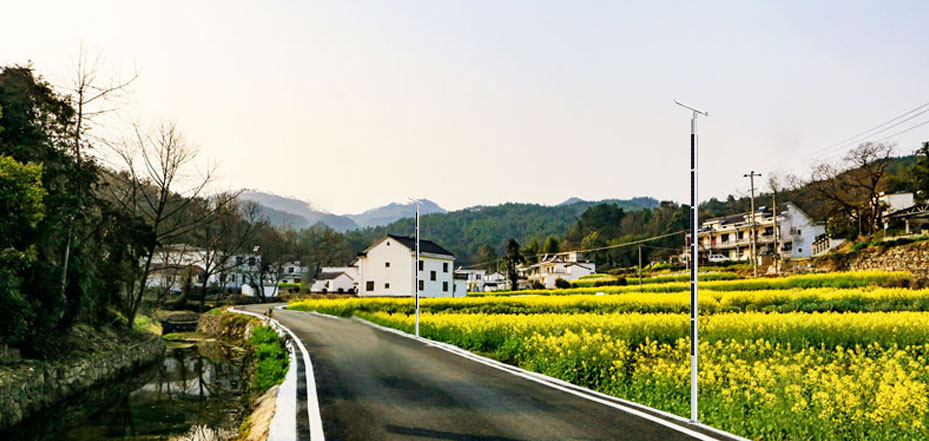

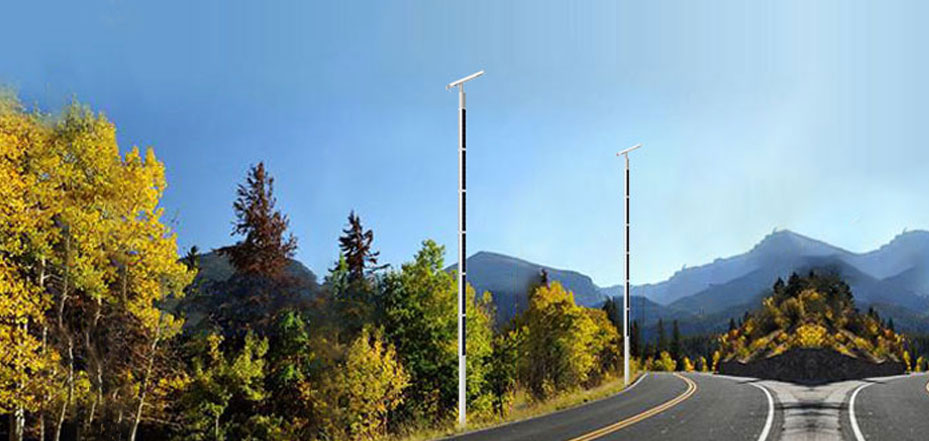

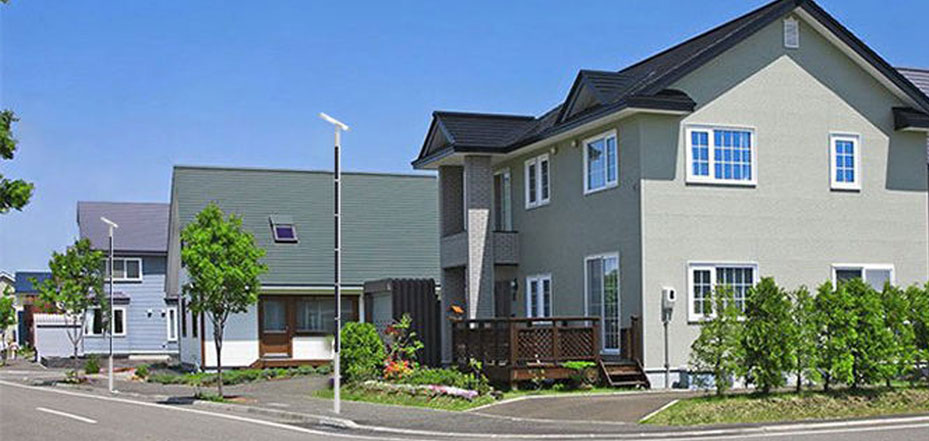

APPLICATIONS
