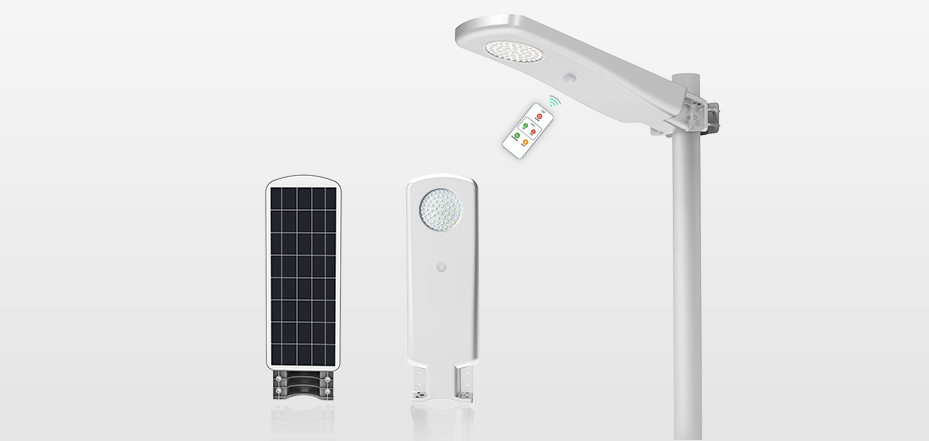

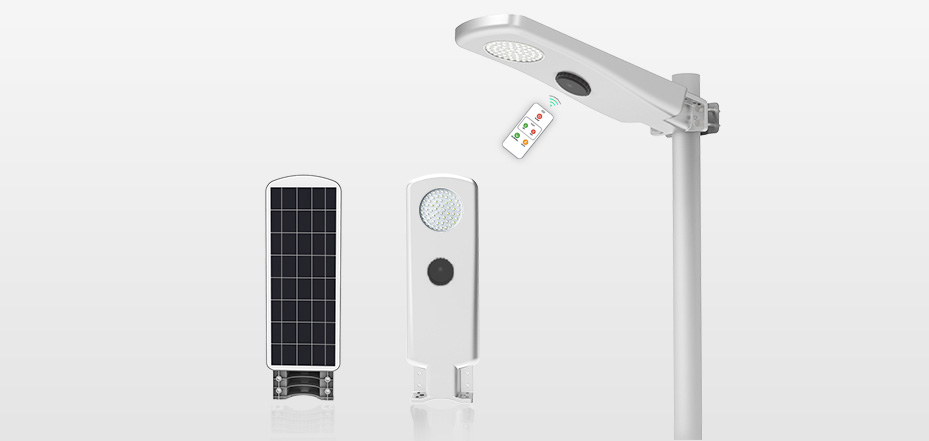

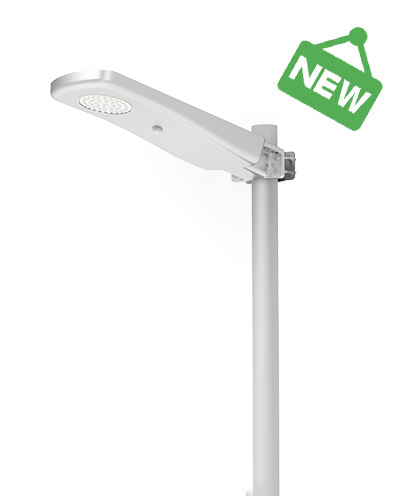

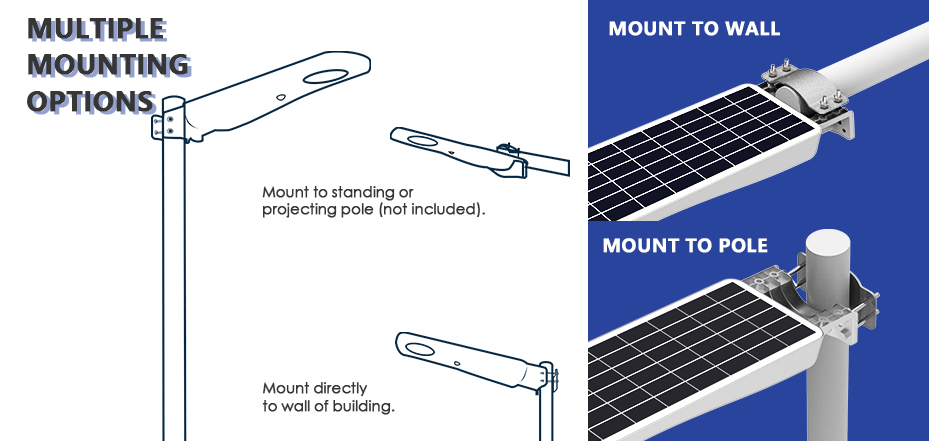

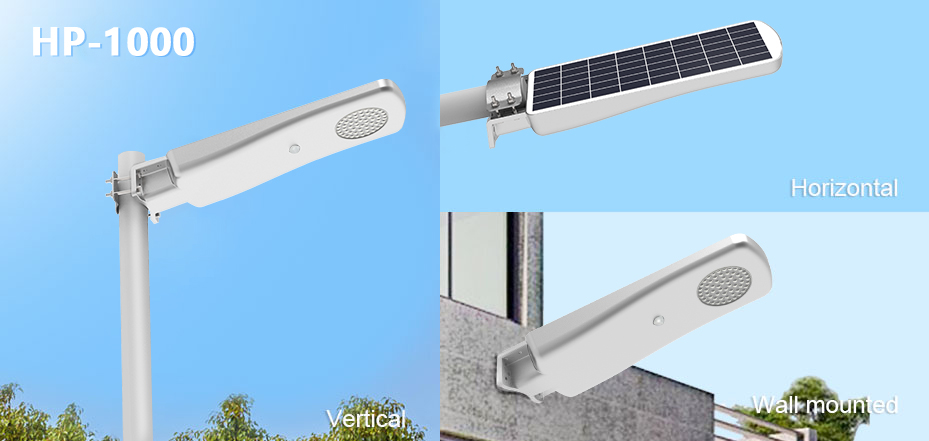

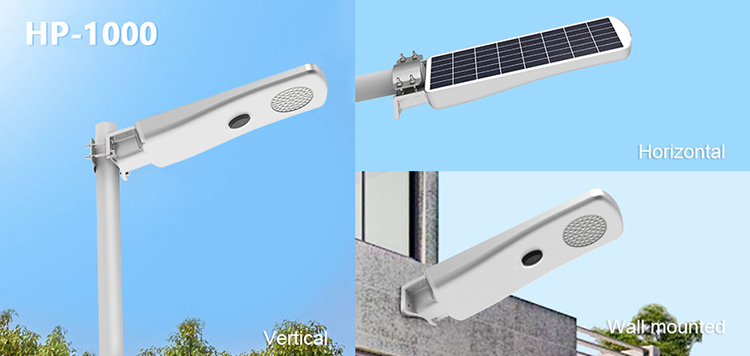

HP1000 ,as the smallest in the hyperion family, with 3 installation methods and intelligent placement of PIR motion sensors to enhance its performance. which has better heat dissipation, and higher power generation efficiency due to larger solar panel area, and more brigher.
Lighting |
|
| Light output | 2200LM |
| LED Chip | 3030 |
| CCT | 2700-6000K ( can be customized) |
| Life Span | 100,000 hours to LM80 specifications |
| Working Way | Motion Sensor/Time Schedule |
Solar Panel |
|
| Power of PV module | 18W |
| Life Span | 25 years |
Storage |
|
| Battery Capacity | 80WH |
| Autonomy | 2-3 days |
| Life Span | 4000 cycles ( 10 years) |
Charging Controller |
|
| Life Span | 12 years |
Mechanical Specifications |
|
| Recommened Pole Height | 4m-6m |
| Recommended Top diameter of the Pole | 40-76mm |
| Product Dimension (mm) | 506*182*62mm |
| Weight（Kg) | 2.2kg |
Environment |
|
| Working Temperature | ‘-15°C to +70°C |
| Water Resistance | IP65 |
