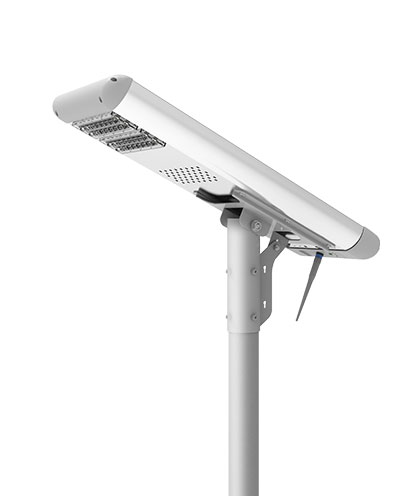

HP-3000

NOMO’s HYPERION Series: Intellectually smart solar led street light created with the simplest and convenient installation formula ever. A breakthrough with our “Smart Data Transmitting System”, NOT only does it have a smart integrated managing system that allows you to remotely operate or monitor performances of each solar street light via Zigbee/Cloud, also provides an eco-friendly energy with free maintenance as well as cost effective. Our HYPERION is built to resist any tough environments. It can also be used for residential villas, garden, commercial, highways/expressways, urban areas, etc.

Solar Panel (W)50W
Light Output4012LM
Battery Capacity275WH
Battery – TypeNewest-generation LIFEPO4 battery
Battery – Service Life8 Years at 70% DoD
Number of LEDS32pcs
Light Source – Type5050
CCT2700-6500K (Can be customized)
LED Lifetime100,000 hours to LM80
Solar Panel – Service Life25years
Working Time3-5days
Recommended Pole Height4-8m
Pole Spacing15-30m
Packing Size (L x W x H)960*410*150mm
Bracket Packing Size (L x W x H)380*260*200mm
Weight (GW)19kg
Operating Temperature-15ºC to +70ºC
Protection RatingIP65
Wireless NetworkZigbee Proprietary Wireless Network allows Remote Management and  Control of Lights using Internet or GSM. One gateway (DTU) per200 lights and all the gateways report to a central control room.
Download Specsheet

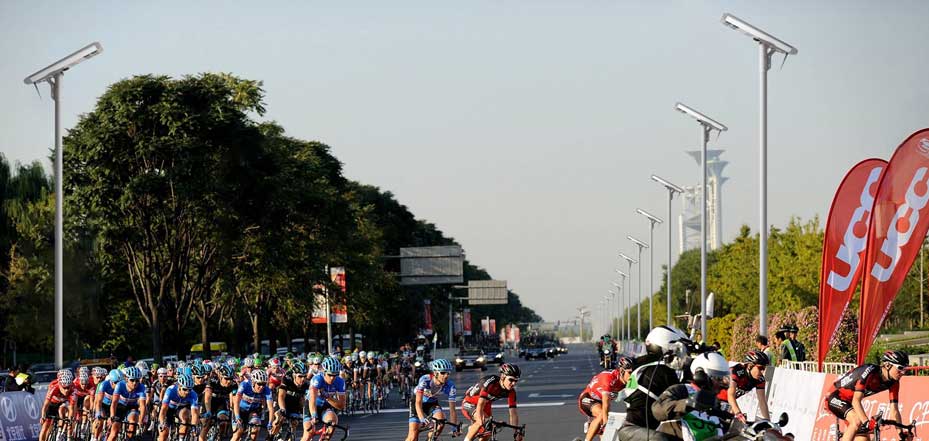

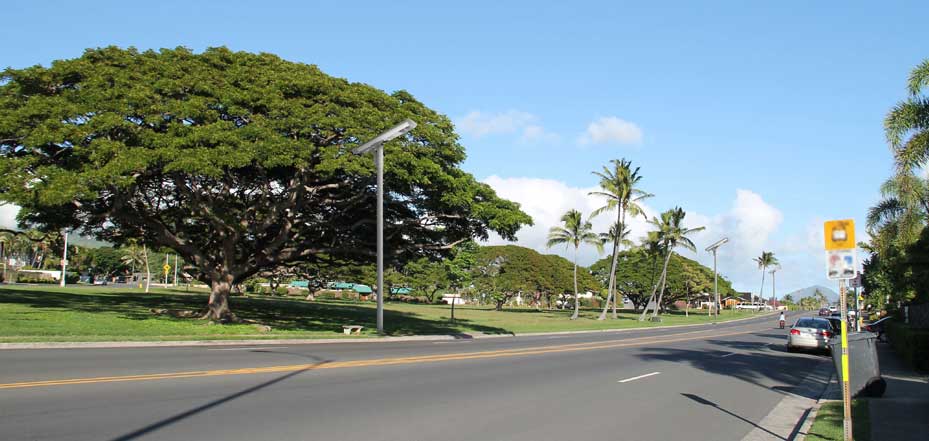

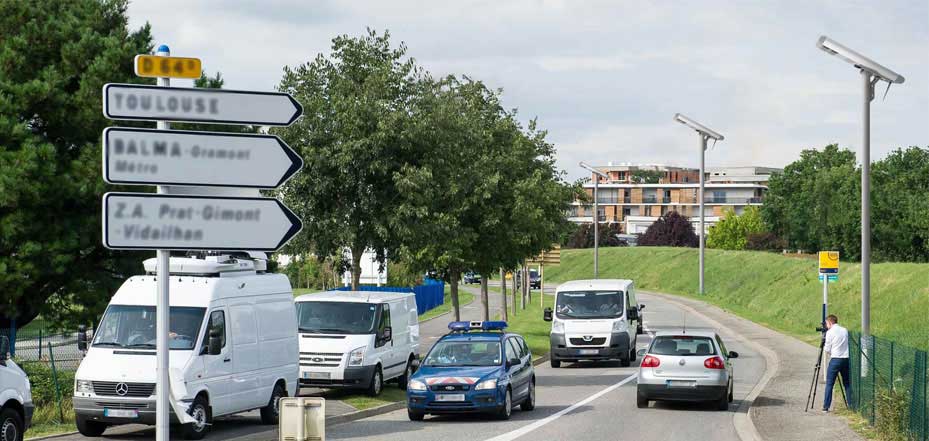

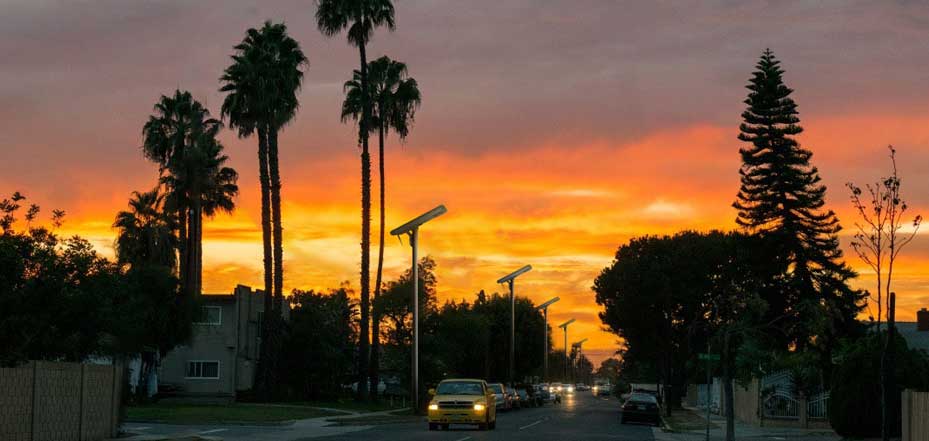

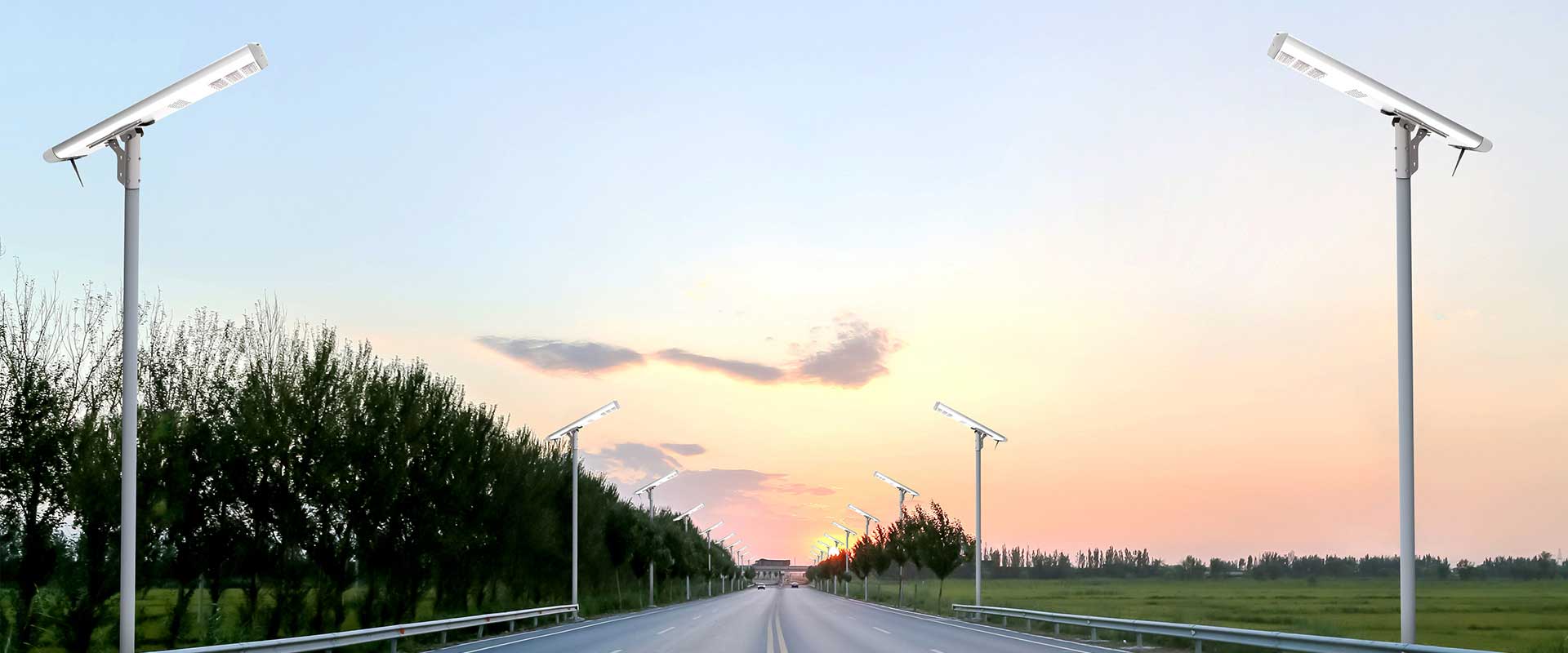

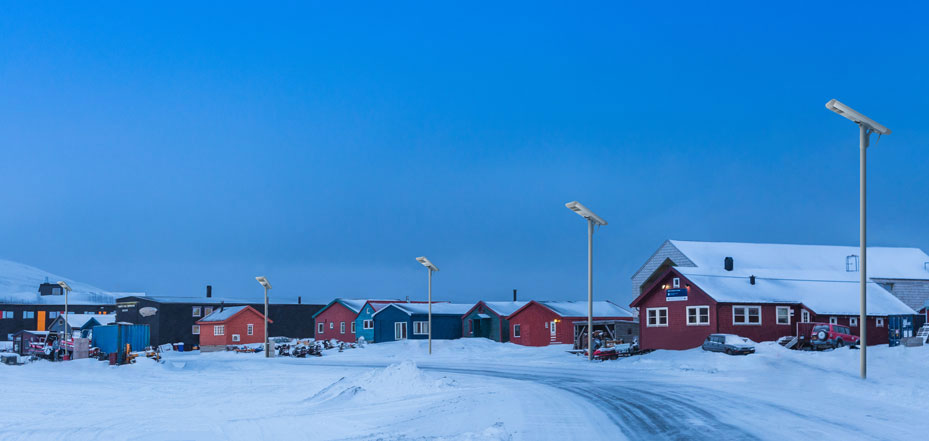

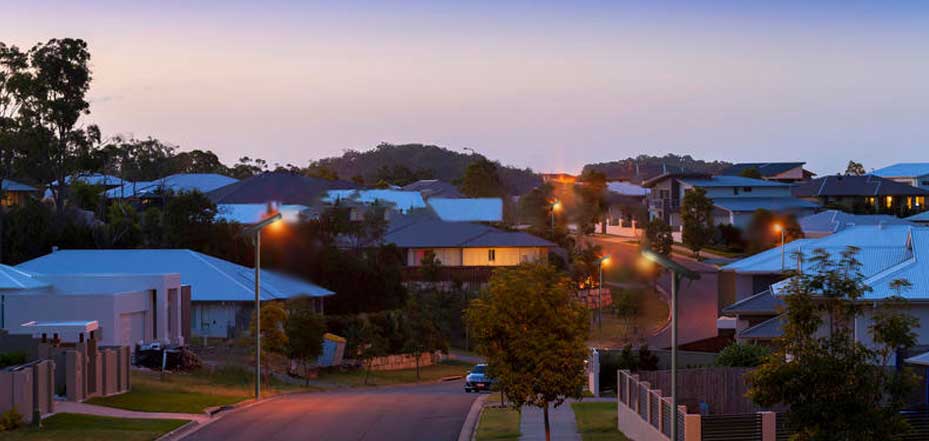

APPLICATIONS

HP-3000
HP-3000
HP-3000
HP-3000
HP-3000
HP-3000
HP-3000
HP-3000
HP-3000
HP-3000
HP-3000

FUNCTION INTORDUCTION

LED Chip

High efficiency long life LED module with SMD LED package mounted on MCPCB.Lumen efficacy of LED ≥220 lm/W.

Lens

Batwing optical design with PMMA material, vastly improve the illumination area and has highly-uniform illumination. and transmittance rate is up to 94%

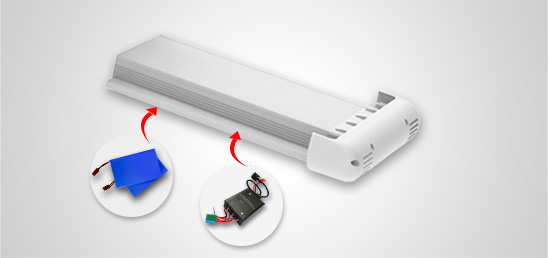

Energy Pack

Energy pack is like a drawer which contains battery pack and MPPT, it has best waterproof to protect the lamp well. Meanwhile It's very easy to replace.

Newest Generation LiFePO4 battery

Comparing with the regular solar light which only can work with low power or shorter time, we adopt the newest generation LiFePO4 battery, it has a longer lifespan, up to more than 4000 circles, and enable to work 12 hours continuously at least with 100% power output. Even at ambient temperature 75 degrees, the battery in the lamp still can discharge normally due to its high temperature-resistance.

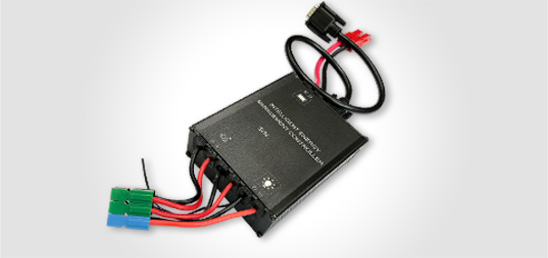

MPPT Controller

The fourth generation controller is more efficient and stable than the third generation controller. At the same time, it has the Internet of Things function and automatic cleaning function of solar panels.

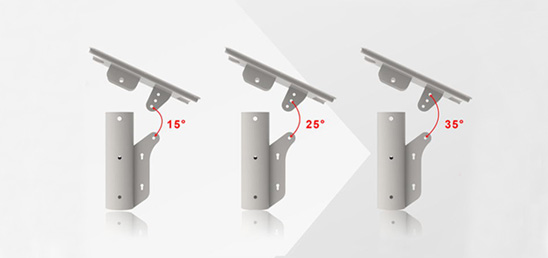

Tailstock

Comparing with the market fixed tailstock, our vertical tailstock has optional angles: 15 degrees, 25 degrees and 35 degrees, you can adjust the suitable angle for maximum sunlight exposure.and meet different lighting demands.

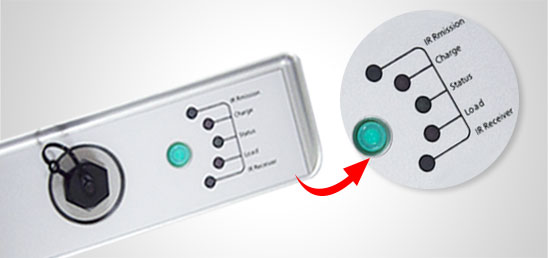

Indicator

Unique switch indicators can help you easily understand the working state of the lamp.

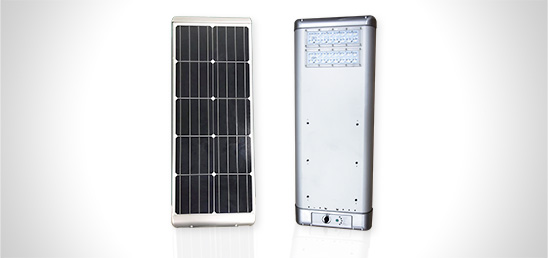

Housing

Pressure die-cast aluminium alloy for housing (heat sink) for effective thermal management, sturdiness, excellent corrosion resistance, and draw design make maintenance and replace the parts very easy and fast.
