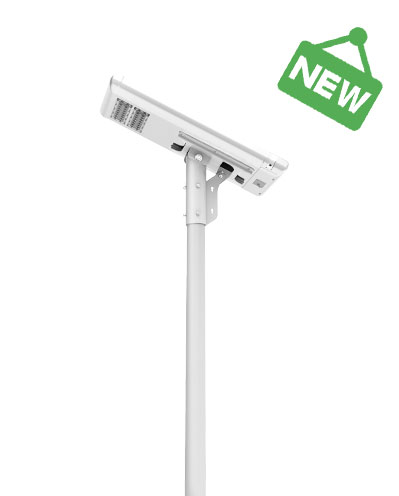

NHP-5000

NOMO’S HPN series:Whole brand new upgrade series solar street light with delicate design, adopt upgrade all-aluminium alloy material,achieve better heat dissipation and 100% waterproof which maintain longer lifetime. All parts are separate individually, unique buckle design, enable installing the light within minutes without tool,save more time and cost,especially convenient for SKD service. Not only can it self-activated by sunlight without switch,also built in four kinds of remote-controllable working mode for option.

SPECIFICATION

Mode NO. NHP-5000
Lighting
light Output 5000-10000LM
LED Chip High bright 5050 (5W/PCS,240LM/W)
CCT 2700-6000K(can be customized)
Life Span 100,000 hours to LM80 specifications
Working Way Motion Sensor / IoT / Time Schedule
Solar Panel
Power of PV module 70W
Life Span 80% power after 25 years
Storage
Battery Capacity 390WH
Life Span 4000 Cycles (10 years)
Charging Controller
Life Span >12 years
Working Mode MPPT
Control Mode Intelligent, activated by sunlight
Environment
Working Temperature -15°C to +70°C
Water Resistance IP65
Mechanical Specifications
Recommended Top diameter of the Pole 76mm
Recommended Pole Height 6m-8m
Net Weight 19Kg
Package  Dimension 822*406*84mm
Download Specsheet

APPLICATIONS

NHP-5000

FUNCTION INTRODUCTION

Housing

Whole brand new upgrade series solar street light with delicate design, adopt upgrade all-aluminium alloy material,achieve better heat dissipation and 100% waterproof which maintain longer lifetime.

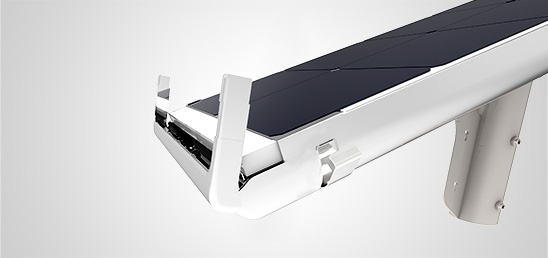

Buckle Design

All parts are separate individually, unique buckle design, enable installing the light within minutes without tool,save more time and cost,especially convenient for SKD service.

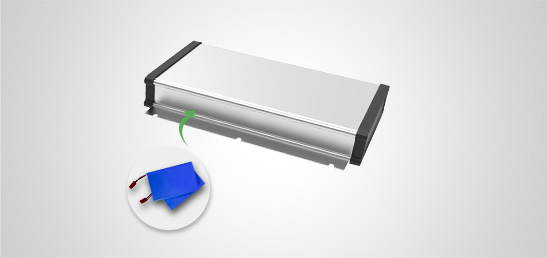

Energy-Pack

Energy pack is like a drawer which contains battery pack and MPPT, it has best waterproof to protect the lamp well. Meanwhile It's very easy to replace.

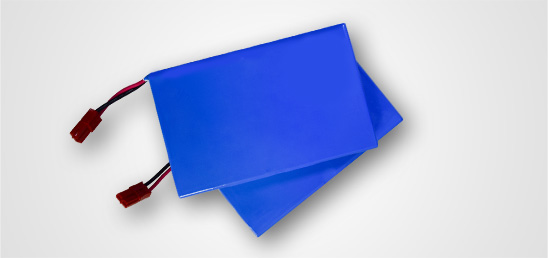

Newest Generation LiFePO4 battery

Comparing with the regular solar light which only can work with low power or shorter time, we adopt the newest generation LiFePO4 battery, it has a longer lifespan, up to more than 4000 circles, and enable to work 12 hours continuously at least with 100% power output. Even at ambient temperature 75 degrees, the battery in the lamp still can discharge normally due to its high temperature-resistance.

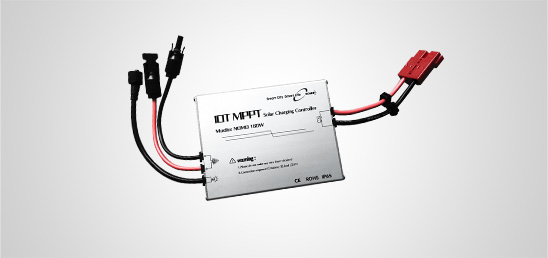

MPPT Controller

The fourth generation controller is more efficient and stable than the third generation controller. At the same time, it has the Internet of Things function and automatic cleaning function of solar panels.

LED Chip

High efficiency long life LED module with SMD LED package mounted on MCPCB.Lumen efficacy of LED ≥220 lm/W.

Lens

Batwing optical design with PMMA material, vastly improve the illumination area and has highly-uniform illumination. and transmittance rate is up to 94%
