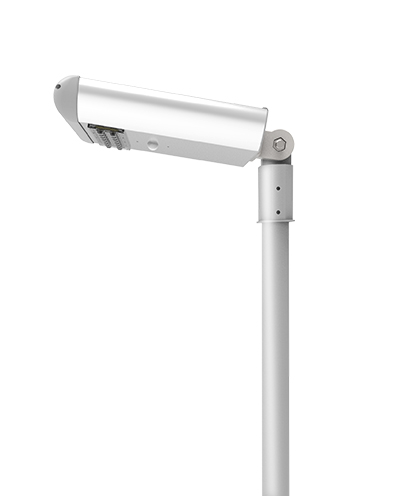

HP2000

NOMO’s HYPERION Series: Intellectually smart solar led street light created with the simplest and convenient installation formula ever. A breakthrough with our “Smart Data Transmitting System”, NOT only does it have a smart integrated managing system that allows you to remotely operate or monitor performances of each solar street light via Zigbee/Cloud, also provides an eco-friendly energy with free maintenance as well as cost effective. Our HYPERION is built to resist any tough environments.It can also be used for residential villas, garden, commercial, highways/expressways.

SPECIFICATION

Lighting

Light output 2000-3000LM
LED Chip 5050
CCT 2700-6000K  ( can be customized)
Life Span 100,000 hours to LM80 specifications
Working Way Motion Sensor/IOT/Time Schedule

Solar Panel

Power of PV module 30W
Life Span 25 years

Storage

Battery Capacity 160WH
Autonomy 2-3 days
Life Span 4000 cycles ( 10 years)

Charging Controller

Life Span 5-8years

Mechanical Specifications

Recommened Pole Height 4-6m
Recommended Top diameter of the Pole 76mm
Product  Dimension (mm) 775*350*86mm
Weight(Kg) 8.4kg

Environment

Working Temperature ‘-15°C to +70°C
Water Resistance IP65



Download Specsheet

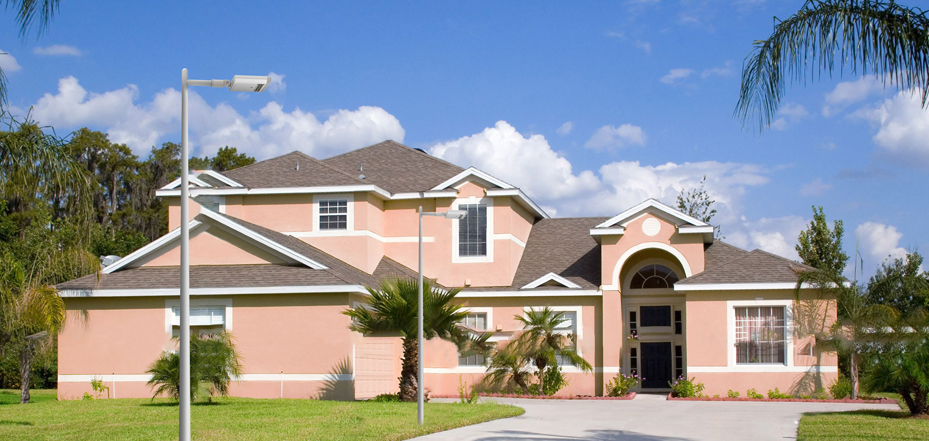

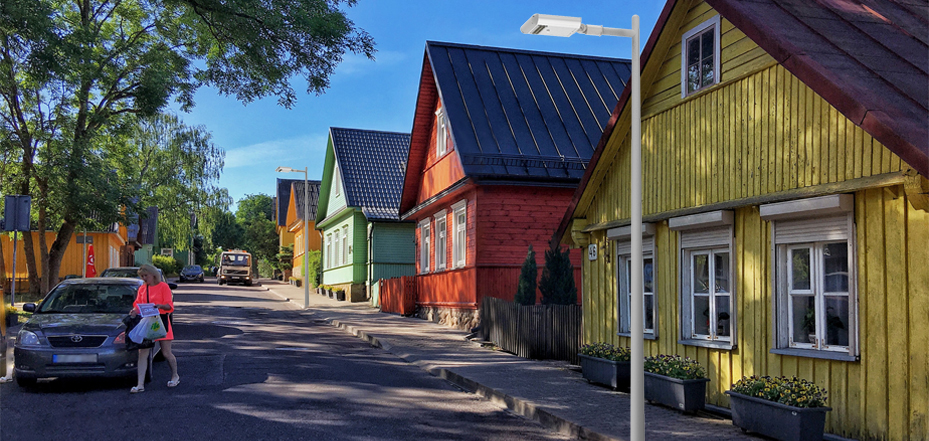

APPLICATIONS

HP2000
HP2000

FUNCTION INTORDUCTION

LED Chip

High efficiency long life LED module with SMD LED package mounted on MCPCB.Lumen efficacy of LED ≥220 lm/W.

Lens

Batwing optical design with PMMA material, vastly improve the illumination area and has highly-uniform illumination. and transmittance rate is up to 94%

Energy Pack

Energy pack is like a drawer which contains battery pack and MPPT, it has best waterproof to protect the lamp well. Meanwhile It's very easy to replace.

Newest Generation LiFePO4 battery

Comparing with the regular solar light which only can work with low power or shorter time, we adopt the newest generation LiFePO4 battery, it has a longer lifespan, up to more than 4000 circles, and enable to work 12 hours continuously at least with 100% power output. Even at ambient temperature 75 degrees, the battery in the lamp still can discharge normally due to its high temperature-resistance.

MPPT Controller

The fourth generation controller is more efficient and stable than the third generation controller. At the same time, it has the Internet of Things function and automatic cleaning function of solar panels.
