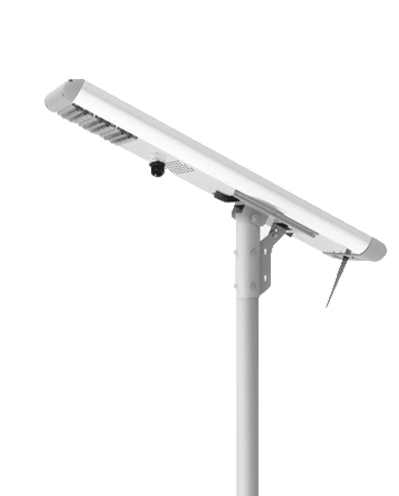

HP5000(CCTV)

NOMO’s HYPERION Series: Intellectually smart solar led street light created with the simplest and convenient installation formula ever. A breakthrough with our “Smart Data Transmitting System”, NOT only does it have a smart integrated managing system that allows you to remotely operate or monitor performances of each solar street light via Zigbee/Cloud, also provides an eco-friendly energy with free maintenance as well as cost effective. Our HYPERION is built to resist any tough environments. It can also be used for residential villas, garden, commercial, highways/expressways, urban areas, etc.

SPECIFICATION



Lighting
Light output 5000-6000LM
LED Chip 5050
CCT 2700-6000K  ( can be customized)
Life Span 100,000 hours to LM80 specifications
Working Way  Motion Sensor/Time Schedule
Camera HIKVISION:DS-2DC2204IW-D3W
Solar Panel
Power of PV module 90W
Life Span 25 years
Storage
Battery Capacity 550WH
Autonomy 2-3 days
Life Span 4000 cycles ( 10 years)
Charging Controller
Life Span >12 years
Working Mode MPPT
Life Span Intelligent,activated by sunlight
Environment
Working Temperature -15°C to +70°C
Water Resistance IP65
Package Info
Packing Size (mm) 380x260x200
Mechanical Specifications
Recommened Pole Height  6-10m
Recommended Top diameter of the Pole 60-76mm
Product  Dimension (mm) 1460x410x150
Weight(Kg)  21



Download Specsheet

APPLICATIONS

HP5000(CCTV)

FUNCTION INTRODUCTION

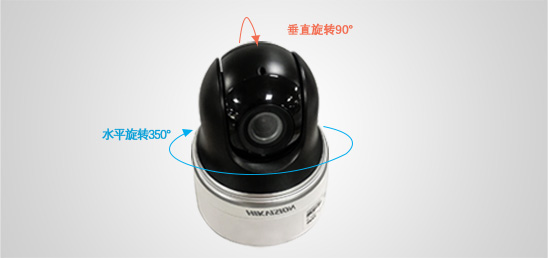

Camera

In order to increase the security of people's lives, a camera can be added to the light, and the camera is powered by electricity produced by the solar panel. Normally speaking, HIK Vision is the priority brand or you can choose the brand as you like.

Tailstock

Comparing with the market fixed tailstock, our vertical tailstock has optional angles: 15 degrees, 25 degrees and 35 degrees, you can adjust the suitable angle for maximum sunlight exposure.and meet different lighting demands.

Energy Pack

Energy pack is like a drawer which contains battery pack and MPPT, it has best waterproof to protect the lamp well. Meanwhile It's very easy to replace.

MPPT Controller

The fourth generation controller is more efficient and stable than the third generation controller. At the same time, it has the Internet of Things function and automatic cleaning function of solar panels.

Newest Generation LiFePO4 battery

Comparing with the regular solar light which only can work with low power or shorter time, we adopt the newest generation LiFePO4 battery, it has a longer lifespan, up to more than 4000 circles, and enable to work 12 hours continuously at least with 100% power output. Even at ambient temperature 75 degrees, the battery in the lamp still can discharge normally due to its high temperature-resistance.

Indicator

Unique switch indicators can help you easily understand the working state of the lamp.

Lens

Batwing optical design with PMMA material, vastly improve the illumination area and has highly-uniform illumination. and transmittance rate is up to 94%

LED Chip

High efficiency long life LED module with SMD LED package mounted on MCPCB.Lumen efficacy of LED ≥220 lm/W.
