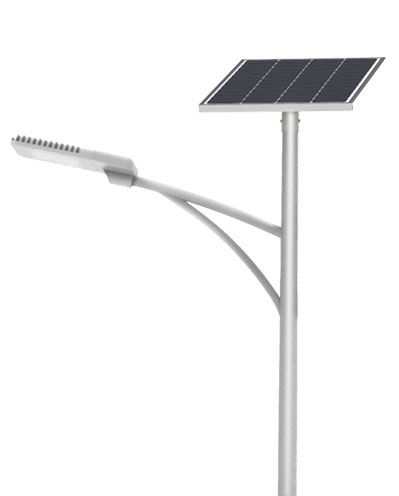

AP-7000

NOMO APOLLO semi-integrated solar street light is an innovative product, designed for high lumen requirements. The adjustable angle of solar panel can maximum absorb the sunlight.Different from similar lights in the market, we add a solar panel on the lamp too, which could longer the working time after a full charge, and the unique adjustable mounting bracket can light the area as needed.

SPECIFICATION

Lighting


Light output 5000LM-7000LM
LED Chip 5050
CCT 2700-6000K  ( can be customized)
Life Span 100,000 hours to LM80 specifications
Working Way Motion Sensor/IOT/Time Schedule

Solar Panel


Power of PV module 80W
Life Span 25 years

Storage


Battery Capacity 384WH
Autonomy 2-3 days
Life Span 4000 cycles ( 10 years)

Charging Controller


Life Span >12years

Mechanical Specifications


Recommened Pole Height 7m-9m
Recommended Top diameter of the Pole 20-30mm
Product  Dimension (mm) solar panel:666*1000*35
  lighting fixture:522*287*136

Environment


Working Temperature ‘-15°C to +70°C
Water Resistance IP65
Download Specsheet

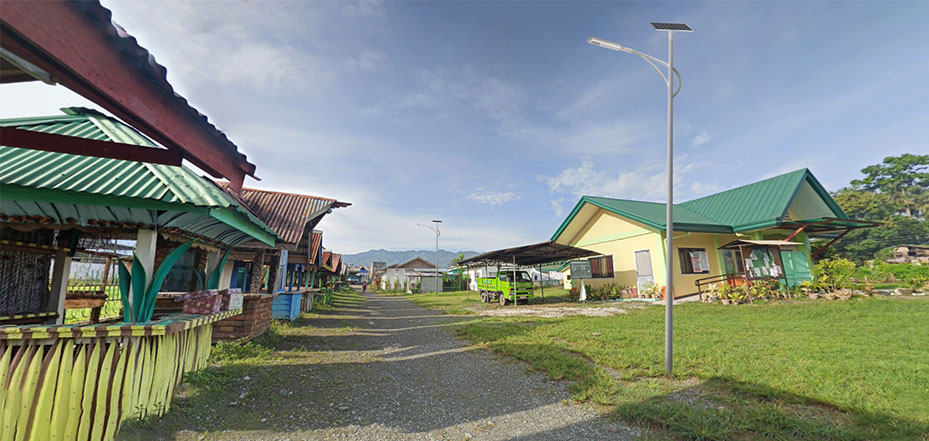

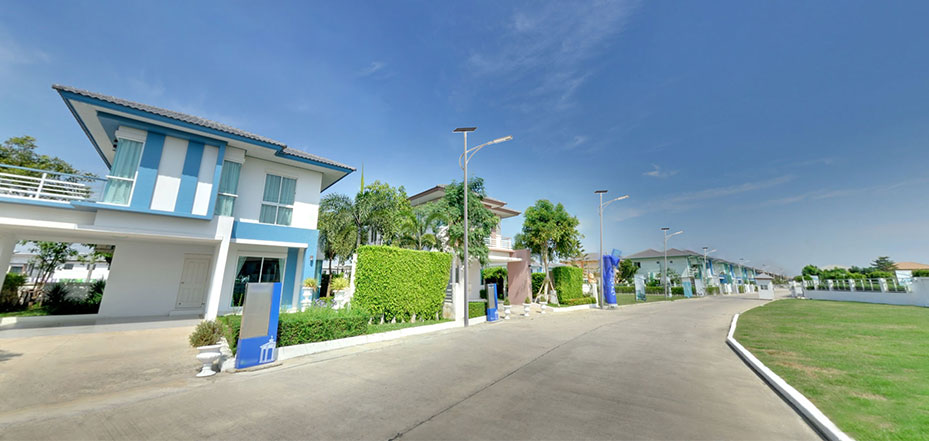

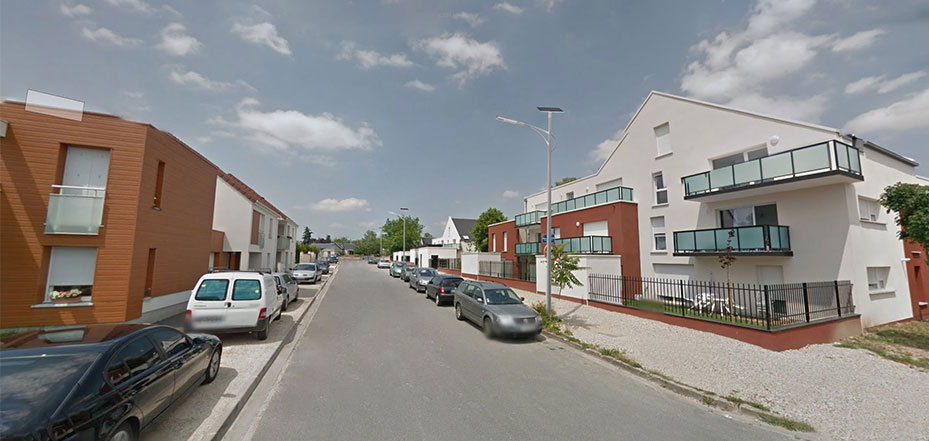

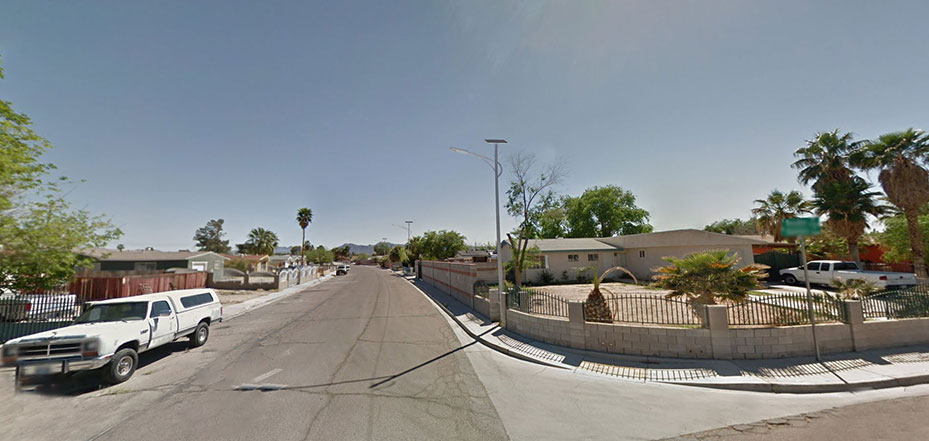

APPLICATIONS

AP-7000
AP-7000
AP-7000
AP-7000

FUNCTION INTRODUCTION

PMMA Lens transmition rate up to 95%

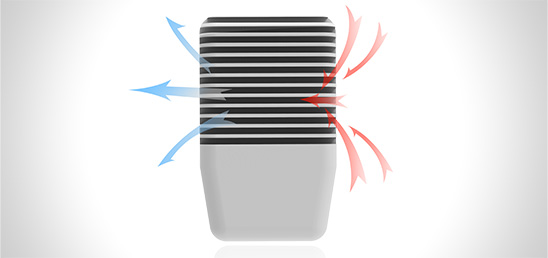

Fin heat dissipation design

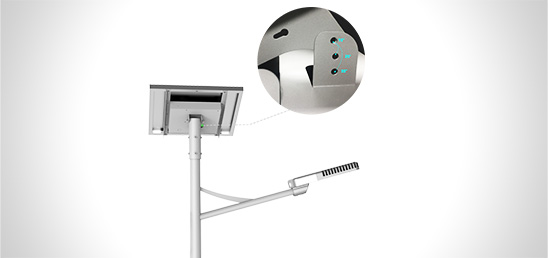

Angle Adjustable bracket

15° / 25° / 35° for option

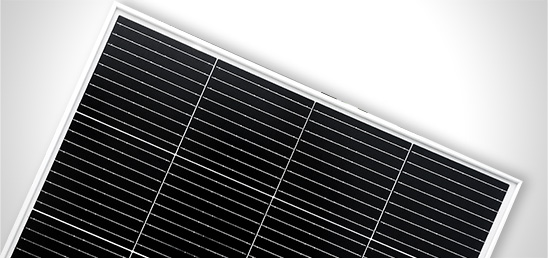

High Efficiency Solar Panel up to 21%
