AP-10000

NOMO APOLLO semi-integrated solar street light is an innovative product, designed for high lumen requirements. The adjustable angle of solar panel can maximum absorb the sunlight.Different from similar lights in the market, we add a solar panel on the lamp too, which could longer the working time after a full charge, and the unique adjustable mounting bracket can light the area as needed.

SPECIFICATION

Lighting

Light output 8000-10000LM
LED Chip 5050
CCT 2700-6000K  ( can be customized)
Life Span 100,000 hours to LM80 specifications
Working Way Motion Sensor/IOT/Time Schedule

Solar Panel

Power of PV module 120W
Life Span 25 years

Storage

Battery Capacity 550WH
Autonomy 2-3 days
Life Span 4000 cycles ( 10 years)

Charging Controller

Life Span >12years

Mechanical Specifications

Recommened Pole Height 6-8m
Recommended Top diameter of the Pole 20-30mm
Product  Dimension (mm) solar panel:696*1032*35
lighting fixture:931*350*85

Environment

Working Temperature ‘-15°C to +70°C
Water Resistance IP65
Download Specsheet

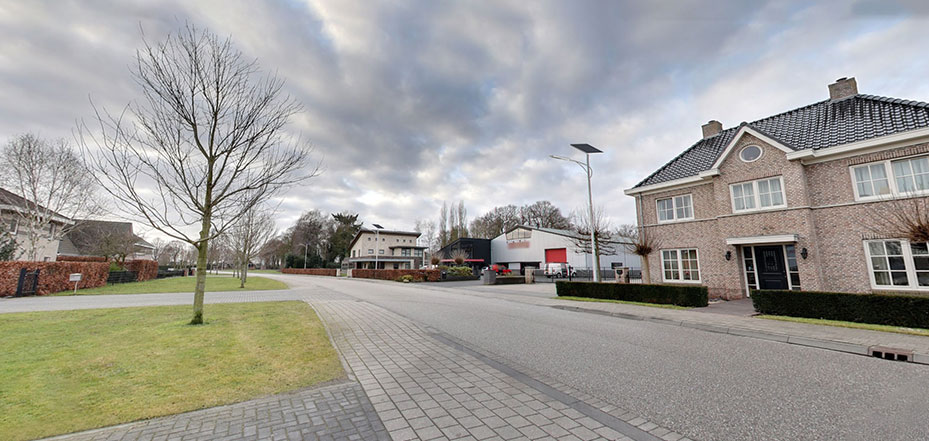

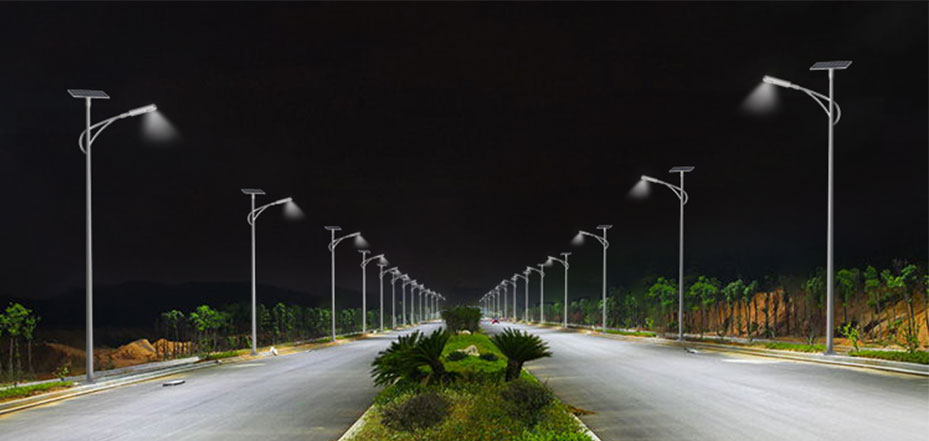

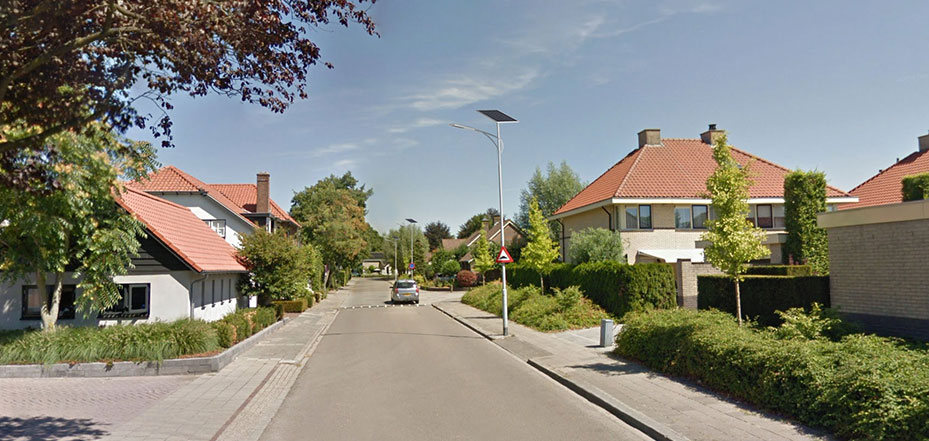

APPLICATIONS

AP-10000
AP-10000
AP-10000

FUNCTION INTORDUCTION

LED Chip

High efficiency long life LED module with SMD LED package mounted on MCPCB.Lumen efficacy of LED ≥220 lm/W.

Lens

Batwing optical design with PMMA material, vastly improve the illumination area and has highly-uniform illumination. and transmittance rate is up to 94%

Energy Pack

Energy pack is like a drawer which contains battery pack and MPPT, it has best waterproof to protect the lamp well. Meanwhile It's very easy to replace.

Newest Generation LiFePO4 battery

Comparing with the regular solar light which only can work with low power or shorter time, we adopt the newest generation LiFePO4 battery, it has a longer lifespan, up to more than 4000 circles, and enable to work 12 hours continuously at least with 100% power output. Even at ambient temperature 75 degrees, the battery in the lamp still can discharge normally due to its high temperature-resistance.

MPPT Controller

The fourth generation controller is more efficient and stable than the third generation controller. At the same time, it has the Internet of Things function and automatic cleaning function of solar panels.
