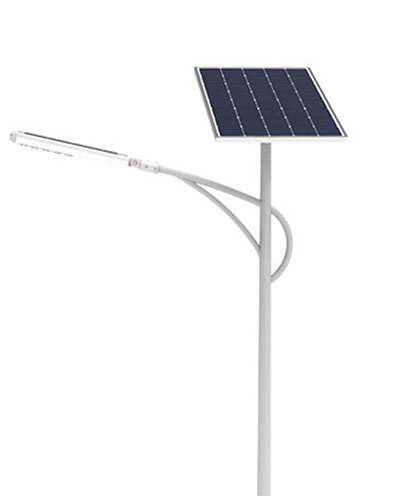

AP-12000

NOMO APOLLO semi-integrated solar street light is an innovative product, designed for high lumen requirements. The adjustable angle of solar panel can maximum absorb the sunlight.Different from similar lights in the market, we add a solar panel on the lamp too, which could longer the working time after a full charge, and the unique adjustable mounting bracket can light the area as needed.

Specifications AP12000
Solar Panel80W 160W
Light Output 10000-12000LM
LiFePo_4 Battery 768WH
Battery – Type Newest-generation LIFEPO4 battery
Battery – Service Life 8 Years at 70% DoD
Solar Cells Very High Efficiency- Proprietary Solar Cells (Greater than 24%)
LED Lifetime 3000-6000K
Optical Efficiency 100,000 hours to LM80
Solar Panel – Service Life 25years
Back Up Time 2+days
Recommended Pole Height <10m
Pole Spacing <30m
Solar Panel Packing Size (L x W x H) 1340*720*50mm
Packing Size (L x W x H) 550*145*415MM
Weight (GW)  30kg
Operating Temperature ‘-15 to +70ºC
Protection Rating IP65 Certificate
Wireless Network Zigbee Proprietary Wireless Network allows Remote Management and  Control of Lights using Internet or GSM.  One gateway (DTU) per200 lights and all the gateways report to a central control room.
Download Specsheet

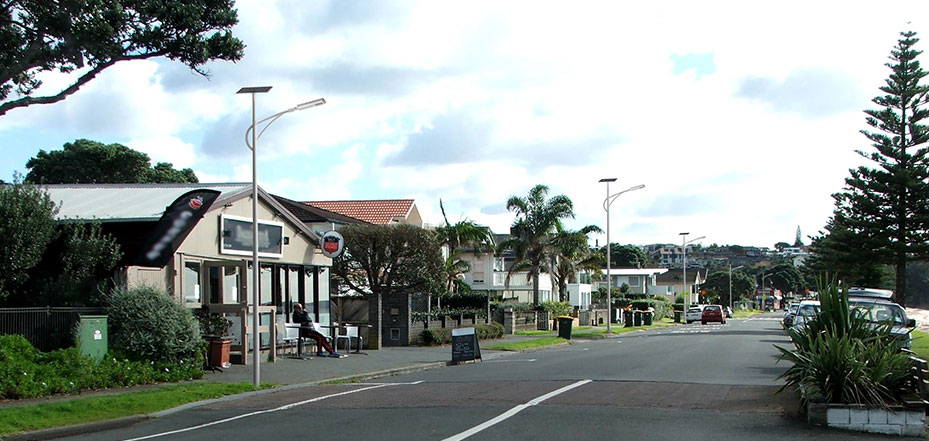

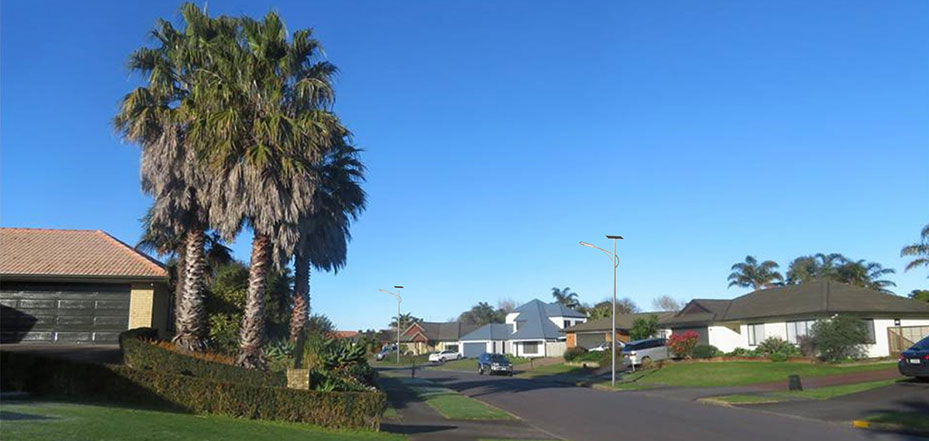

APPLICATIONS

AP-12000
AP-12000
AP-12000

FUNCTION INTORDUCTION

LED Chip

High efficiency long life LED module with SMD LED package mounted on MCPCB.Lumen efficacy of LED ≥220 lm/W.

Lens

Batwing optical design with PMMA material, vastly improve the illumination area and has highly-uniform illumination. and transmittance rate is up to 94%

Energy Pack

Energy pack is like a drawer which contains battery pack and MPPT, it has best waterproof to protect the lamp well. Meanwhile It's very easy to replace.

Newest Generation LiFePO4 battery

Comparing with the regular solar light which only can work with low power or shorter time, we adopt the newest generation LiFePO4 battery, it has a longer lifespan, up to more than 4000 circles, and enable to work 12 hours continuously at least with 100% power output. Even at ambient temperature 75 degrees, the battery in the lamp still can discharge normally due to its high temperature-resistance.

MPPT Controller

The fourth generation controller is more efficient and stable than the third generation controller. At the same time, it has the Internet of Things function and automatic cleaning function of solar panels.
