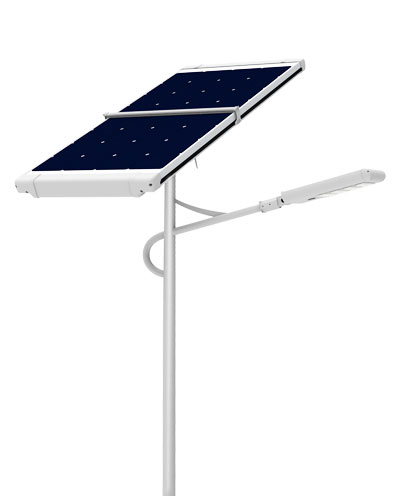

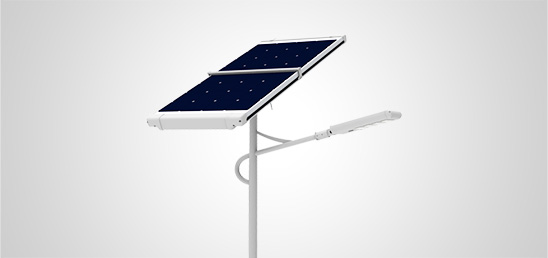

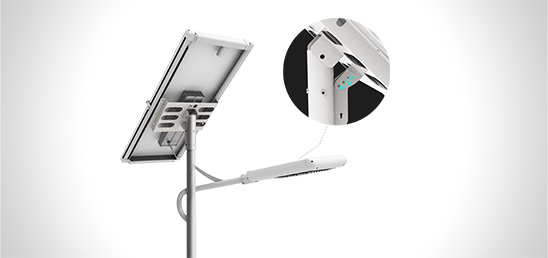

Nomo’s Ingenuity creation All in Two self-cleaning solar street light, which is a new fulfillment of the EOS self-cleaning series. Compared to the All in One self-cleaning, it is more flexible and can 100% support ultra-high brightness requirements for any projects at any place.
| Specifications | EOS-120W | EOS-160W |
| Solar Panel | 120W | 160W |
| Light Output | 12064LM | 16920LM |
| Battery – Type | Newest-generation LIFEPO4 battery | |
| Battery Capacity | 900WH 1200WH | |
| Battery-Service Life | 8 Years at 70% DoD and at 45°ambient | |
| Light Source-Type | High Efficiency LED | |
| Light Head Lifetime | 100,000hours to LM80 specifications | |
| Solar panel- Service Life | 25Years | |
| Solar Cells | Very High Efficiency- Proprietary Solar Cells (Greater than 24%) | |
| Controller | Microprocessor based Energy Management and Wireless Communications | |
| Recommended Pole Height | <12m | |

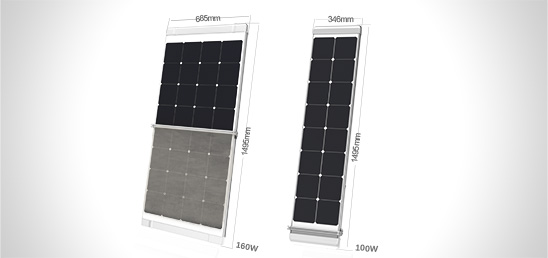

| Dimensions (L x W x H) | 1495*514*87mm | 1495*672*87mm |
| Optional Temperature | -20℃ to + 70℃ | |
| Protection Rating | IP65 Certificate | |
| Wireless Network | Zigbee Proprietary Wireless Network allows Remote Management and Control of Lights using Internet or GSM. One gateway(DTU) per 200 lights and all the gateways report to a central control room. |
|

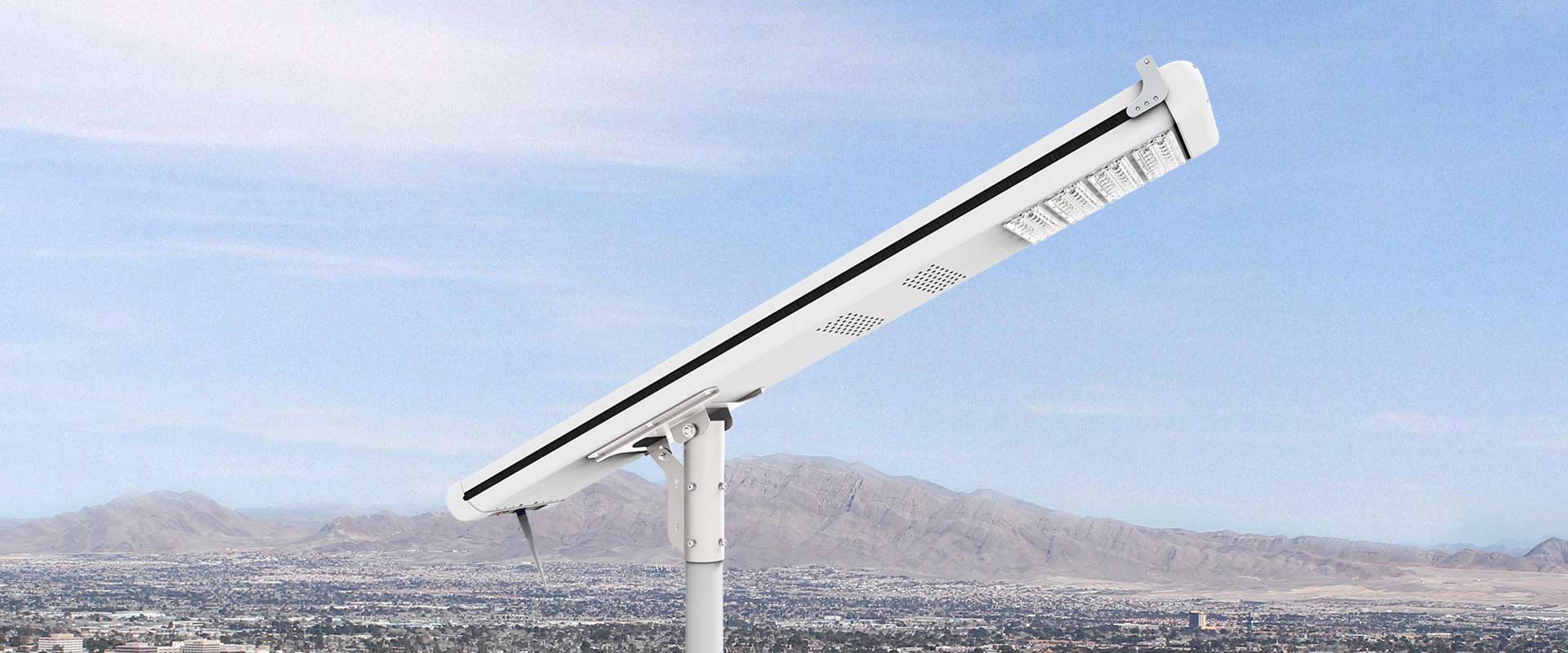

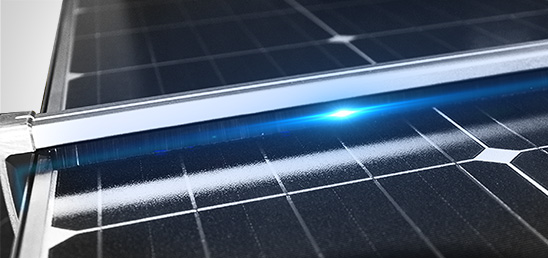

Solar panel efficiency will be decreased greatly if the dust, sand, bird droppings or others accumulated on the panel. This self-cleaning function on the light can solve this problem, it's 100% self-sufficiency: twice a day, swipe cleaning back and forth. And time setting can be adjusted conveniently via our patent smart lighting control system.
Indicator Unique switch indicators can help you easily understand the working state of the lamp.
The fourth generation controller is more efficient and stable than the third generation controller. At the same time, it has the Internet of Things function and automatic cleaning function of solar panels.
Comparing with the regular solar light which only can work with low power or shorter time, we adopt the newest generation LiFePO4 battery, it has a longer lifespan, up to more than 3000 circles, and enable to work 12 hours continuously at least with 100% power output. Even at ambient temperature 75 degrees, the battery in the lamp still can discharge normally due to its high temperature-resistance.
Energy pack is like a drawer which contains battery pack and MPPT, it has best waterproof to protect the lamp well. Meanwhile It's very easy to replace.

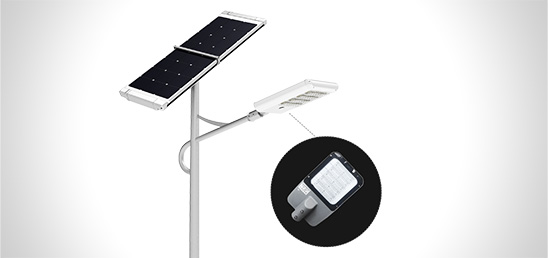

High efficiency long life LED module with SMD LED package mounted on MCPCB.Lumen efficacy of LED ≥220 lm/W.
