IROBOT

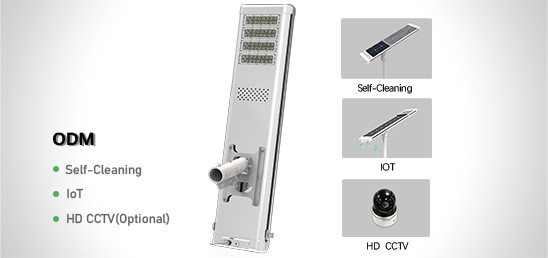

NOMO’s exclusive labor-saving robotic self-cleaning solar street light, is specially created to offer a wide range of applications, especially in places where it seldom rains. Our solar street lights can self clean the dust or any other particles from the surface of the solar panel. It’s a great advantage to have a built-in self-cleaning system. Setting by oneself commanding twice a day, swipe cleaning back and forth that totals up to 4 slides via our Data Transmitting Unit. Time setting can be adjusted in your favor from your account on DTU.

SpecificationsHP-3000SCHP-5000SCHP-8000SC
Light Output 3000-4000LM5000-6000LM7000-10000LM
Battery – TypeNewest-generation LIFEPO4 battery
Battery Capacity275WH550WH825WH
Battery – Service Life8 Years at 70% DoD and at 45º ambient
Light Source – TypeHigh Efficiency LED, Colour Temperature WW 3200K;NW 4200K;CW 5500K (Customized)
Light Head Lifetime100,000 hours to LM80 specifications
Solar Panel (W)50W100W130W
Solar Panel – Service Life25 Years
Solar CellsVery High Efficiency – Proprietary Solar Cells (Greater than 24%)
ControllerMicroprocessor based Energy Management and Wireless Communications
Recommended Pole Height<8m<10m<12m

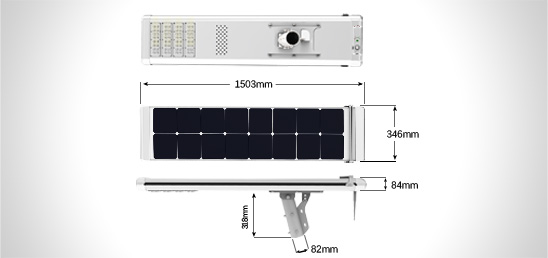

Dimensions (L x W x H)870*346*84mm1503*346*84mm1840*346*84mm

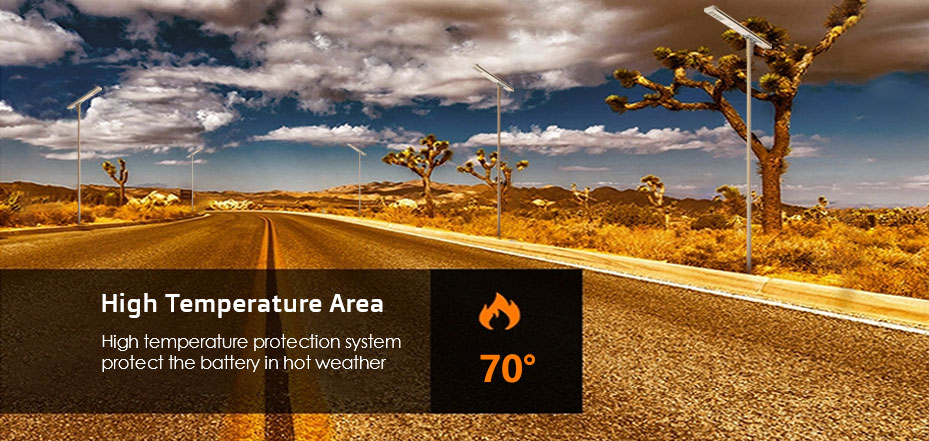

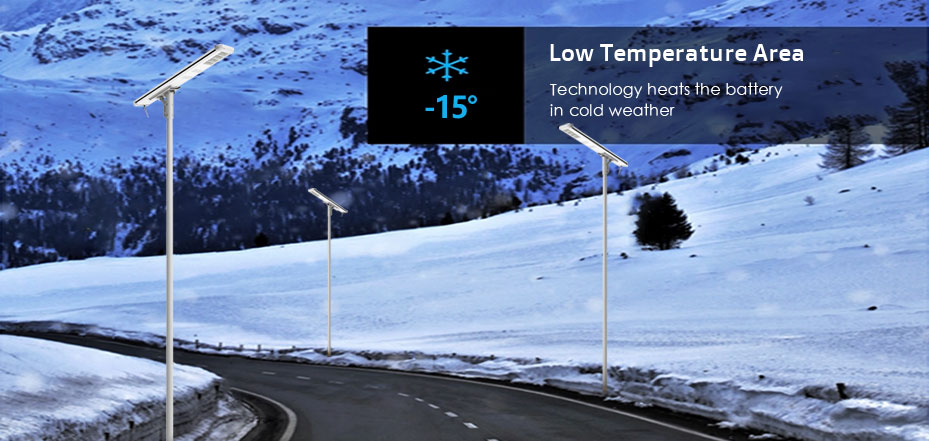

Operating Temperature’-15ºC to +70ºC
Protection RatingIP65 Certificate
Wireless NetworkZigbee Proprietary Wireless Network allows Remote Management and Control of Lights using Internet
or GSM. One gateway(DTU) per 200 lights and all the gateways report to a central control room.
Download Specsheet

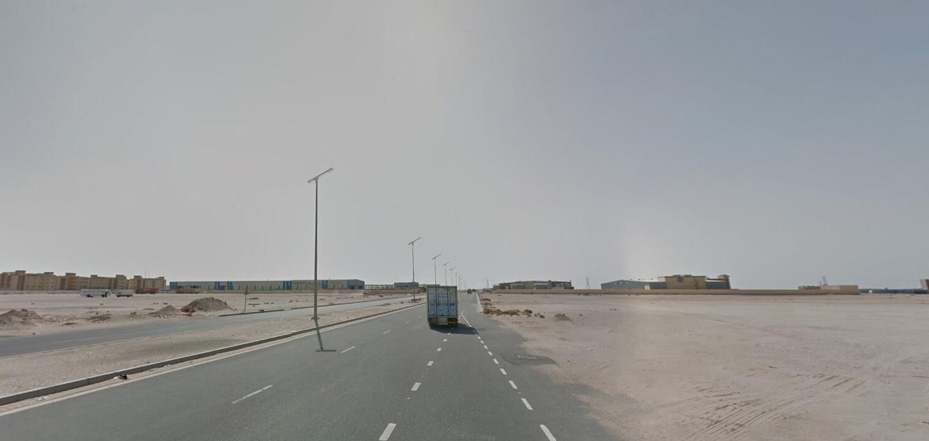

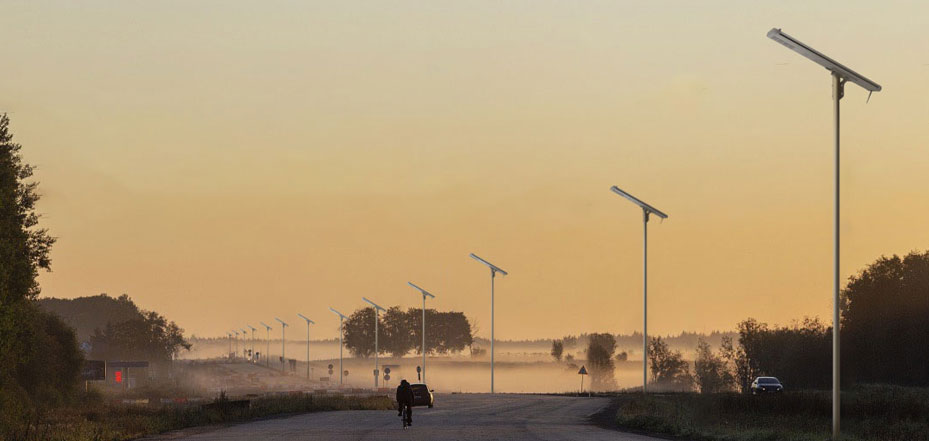

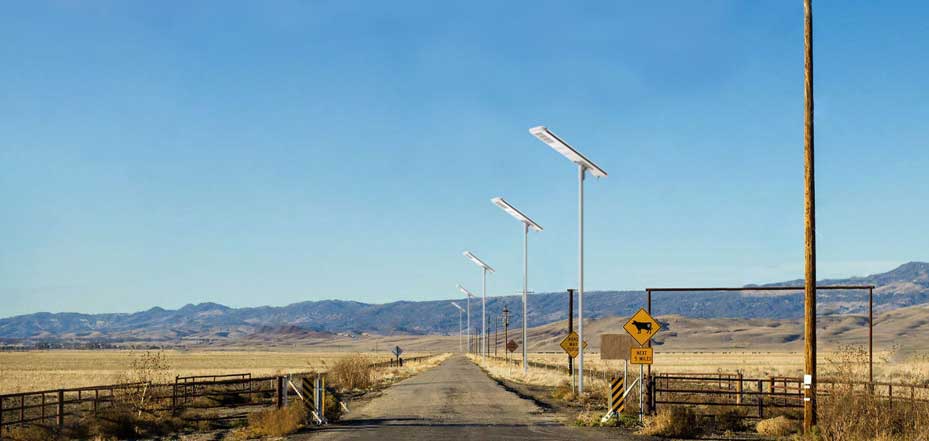

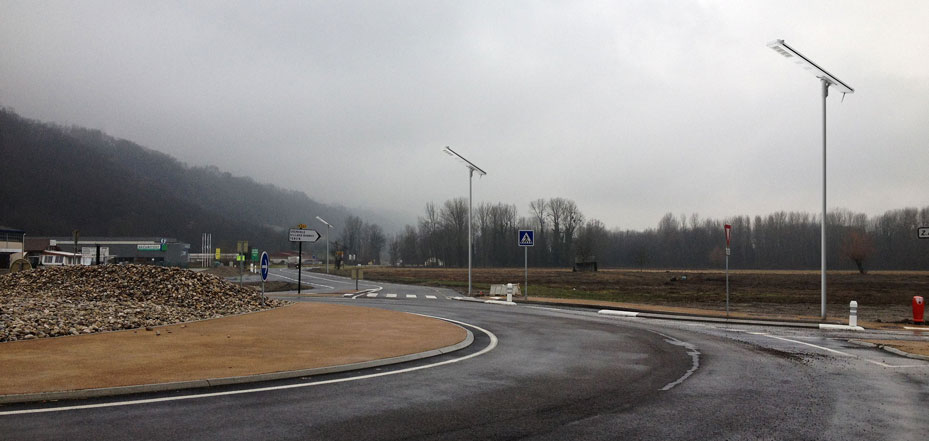

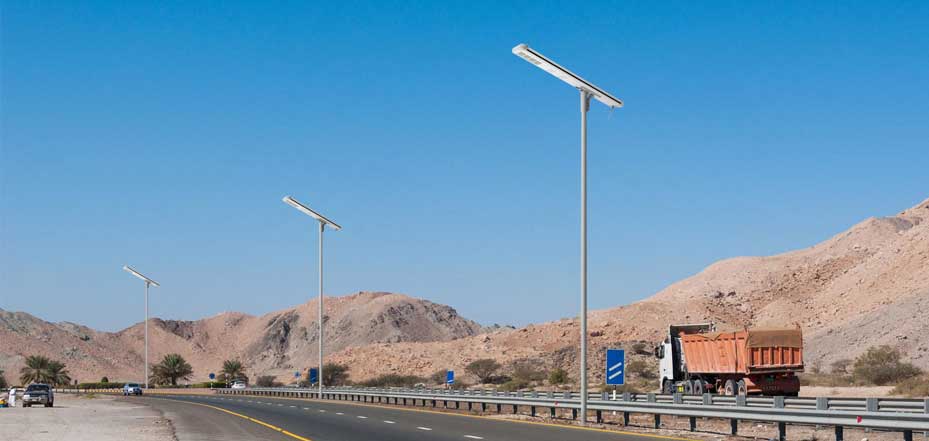

APPLICATIONS

IROBOT
IROBOT
IROBOT
IROBOT
IROBOT
IROBOT

FUNCTION INTORDUCTION

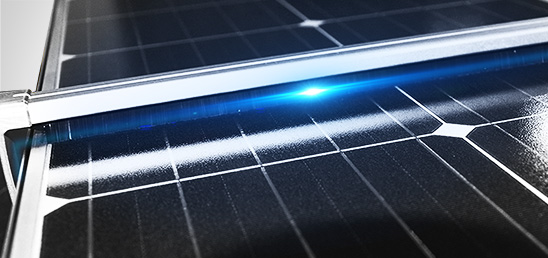

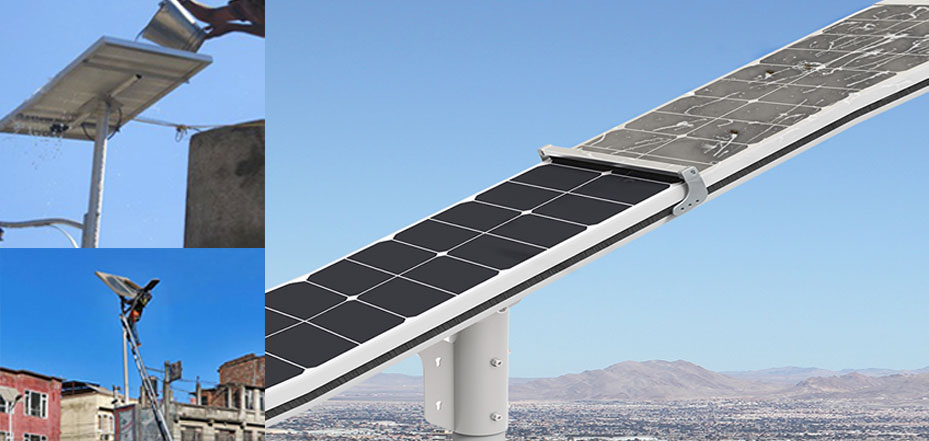

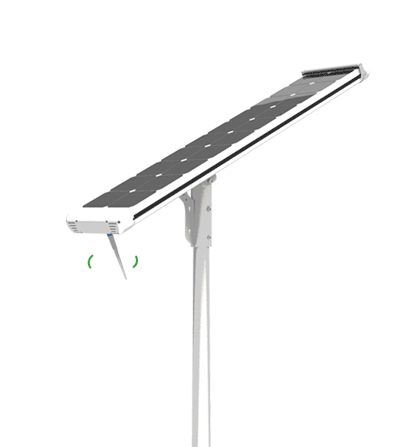

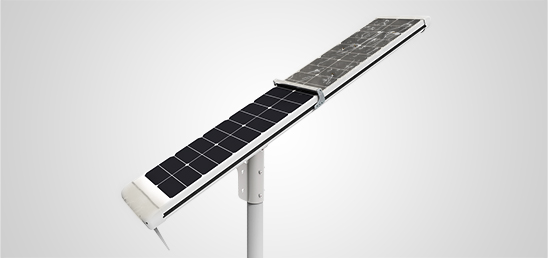

Self-Cleaning

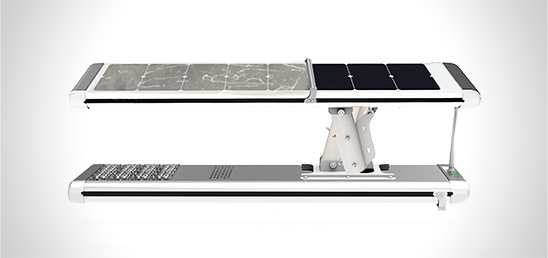

Solar panel efficiency will be decreased greatly if the dust, sand, bird droppings or others accumulated on the panel. This self-cleaning function on the light can solve this problem, it's 100% self-sufficiency: twice a day, swipe cleaning back and forth. And time setting can be adjusted conveniently via our patent smart lighting control system.

Indicator

Indicator Unique switch indicators can help you easily understand the working state of the lamp.

MPPT Controller

The fourth generation controller is more efficient and stable than the third generation controller. At the same time, it has the Internet of Things function and automatic cleaning function of solar panels.

Newest Generation LiFePO4 battery

Comparing with the regular solar light which only can work with low power or shorter time, we adopt the newest generation LiFePO4 battery, it has a longer lifespan, up to more than 3000 circles, and enable to work 12 hours continuously at least with 100% power output. Even at ambient temperature 75 degrees, the battery in the lamp still can discharge normally due to its high temperature-resistance.

Energy Pack

Energy pack is like a drawer which contains battery pack and MPPT, it has best waterproof to protect the lamp well. Meanwhile It's very easy to replace.

LED Chip

High efficiency long life LED module with SMD LED package mounted on MCPCB.Lumen efficacy of LED ≥220 lm/W.
