MINI-HELIOS

Mini-Helios triangular solar bollards are ideal for road applications in parks and villas. The four pieces monocrystalline silicon solar panel absorbs solar energy in all directions, and activates the night lighting switch automatically. 360° illumination and one meter height can perfectly illuminate the ground and surrounding environment.Independent and unique aesthetic design combined with high-quality structure making this Mini-Helios very suitable for places requiring high-quality and low maintenance lighting.

SPECIFICATION

Lighting

Light output 3000LM
LED Chip 5050
CCT 2700-6000K  ( can be customized)
Life Span 100,000 hours to LM80 specifications
Working Way Motion Sensor/IOT/Time Schedule

Solar Panel

Power of PV module 70W
Life Span 25 years

Storage

Battery Capacity 150WH
Autonomy 2-3 days
Life Span 4000 cycles ( 10 years)

Charging Controller

Life Span >12years

Mechanical Specifications

Recommened Pole Height 1m
Recommended Top diameter of the Pole 60mm
Product  Dimension (mm) 1000*300*300

Environment

Working Temperature ‘-15°C to +70°C
Water Resistance IP65
Download Specsheet

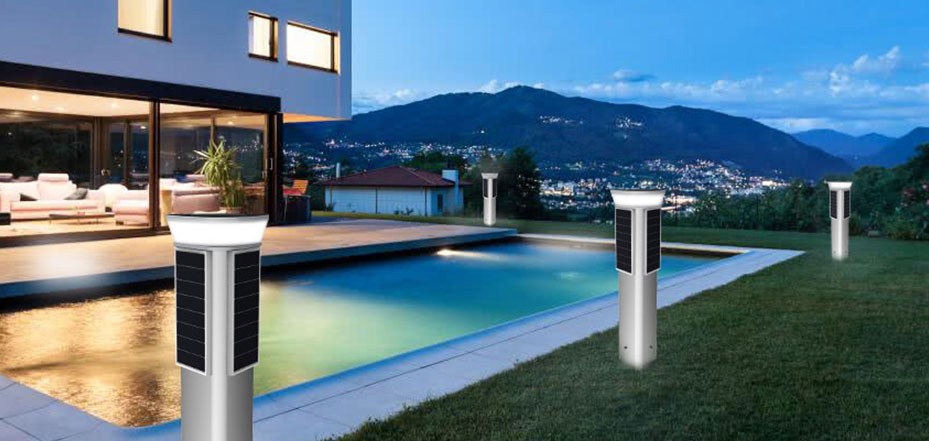

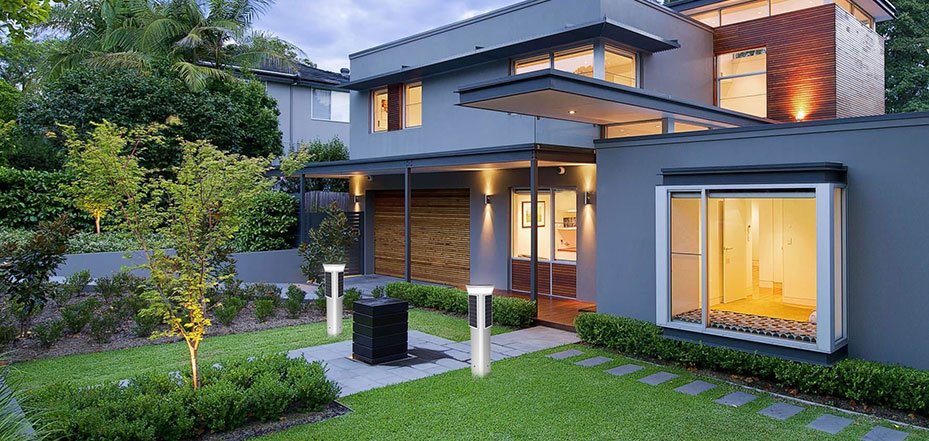

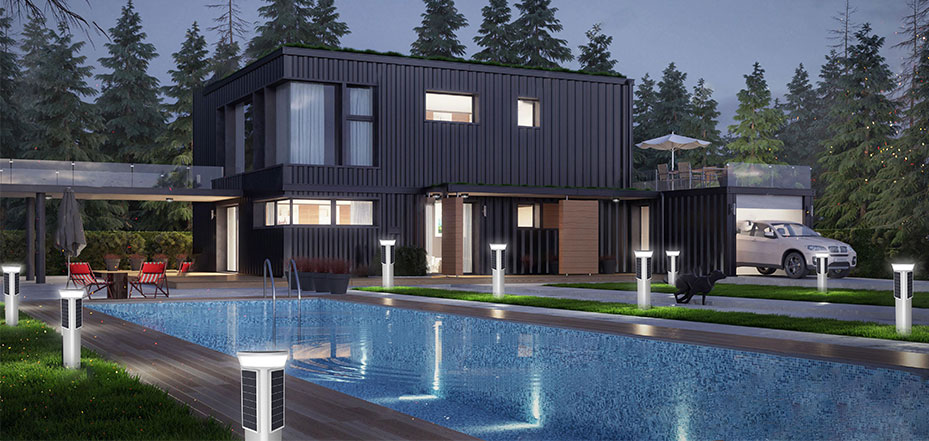

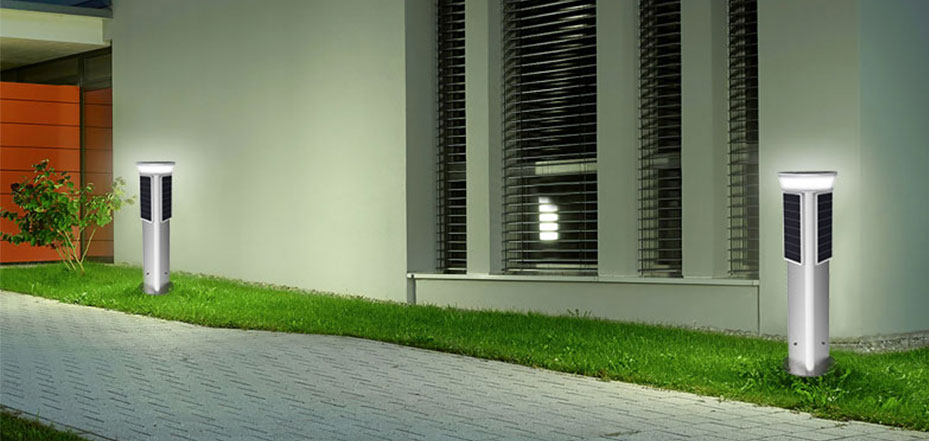

APPLICATIONS

MINI-HELIOS
MINI-HELIOS
MINI-HELIOS
MINI-HELIOS

FUNCTION INTORDUCTION
