NHP-3000

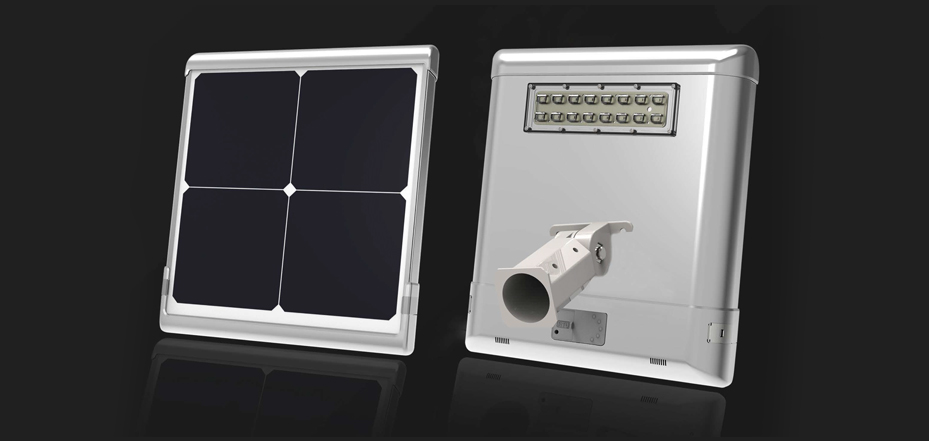

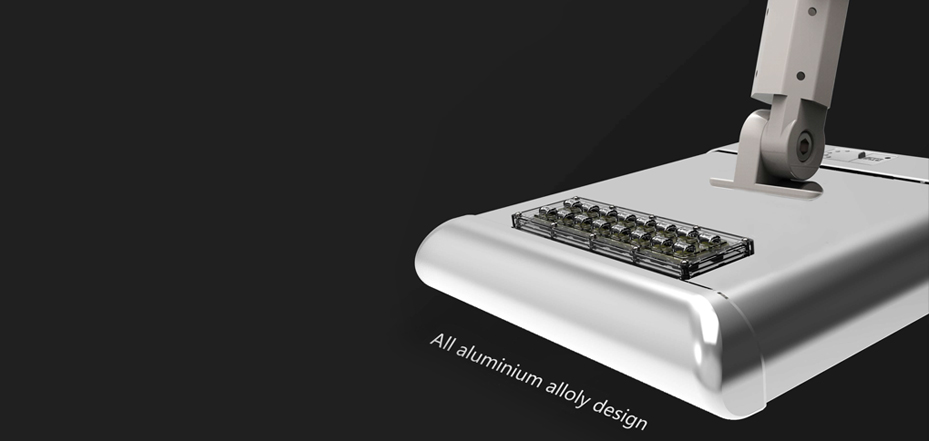

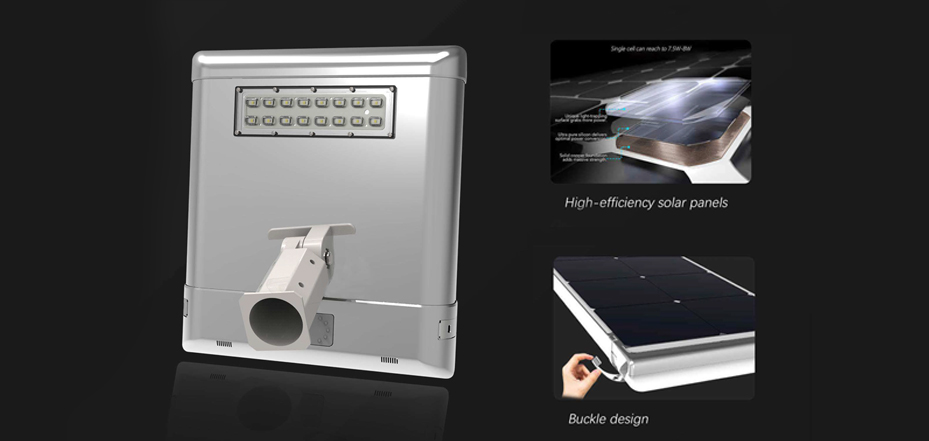

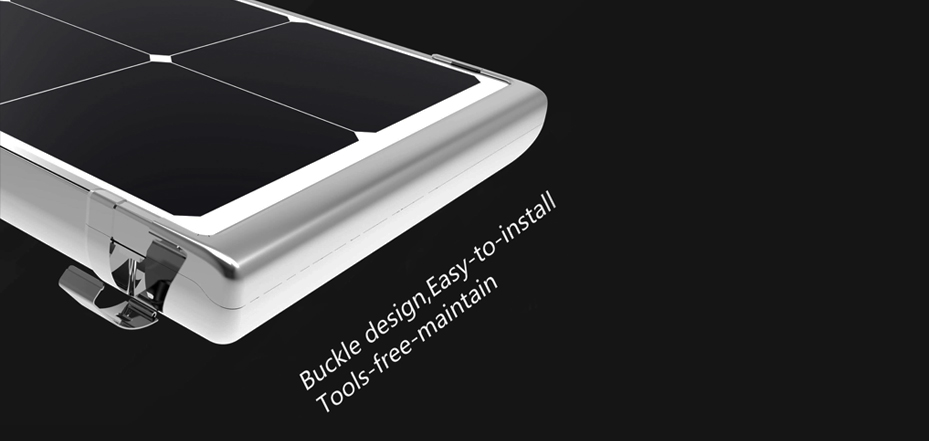

NOMO’S HPN series:Whole brand new upgrade series solar street light with delicate design, adopt upgrade all-aluminium alloy material,achieve better heat dissipation and 100% waterproof which maintain longer lifetime. All parts are separate individually, unique buckle design, enable installing the light within minutes without tool,save more time and cost,especially convenient for SKD service. Not only can it self-activated by sunlight without switch,also built in four kinds of remote-controllable working mode for option.

SPECIFICATION

Lighting

Light output 5000LM
LED Chip 5050
CCT 2700-6000K  ( can be customized)
Life Span 100,000 hours to LM80 specifications
Working Way Motion Sensor/IOT/Time Schedule

Solar Panel

Power of PV module 40W
Life Span 25 years

Storage

Battery Capacity 280WH
Autonomy >10 days
Life Span 4000 cycles ( 10 years)

Charging Controller

Life Span >12 years

Mechanical Specifications

Recommened Pole Height 3m-6m
Recommended Top diameter of the Pole 76mm
Product  Dimension (mm) 457*406*84mm
Weight(Kg) 19.2kg

Environment

Working Temperature ‘-15°C to +70°C
Water Resistance IP65



Download Specsheet

APPLICATIONS

NHP-3000
NHP-3000
NHP-3000
NHP-3000

FUNCTION INTRODUCTION
