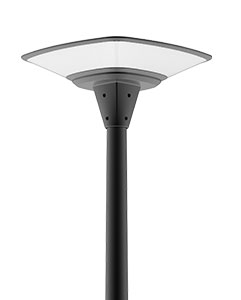

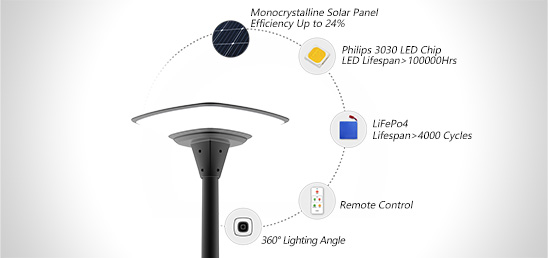

The design of the Pallas Quad solar light comes from the inspiration and power of the universe, combined with the best energy saving parts—solar panel, LED lamp and LiFePO4 battery. With the help of the controller and MPPT controller, it realizes the functions of high brightness with low energy, long lifespan and free maintenance. At the same time, it is very convenient to ship and install. It is one of the best patent products of NOMO Group.
| Mode NO. | Pallas Quad |
| Lighting | |
| light Output | 4500LM Maximum |
| LED Chip | High bright 3030 |
| CCT | 2700-6000K(can be customized) |
| Life Span | 100,000 hours to LM80 specifications |
| Working Way | Motion Sensor / Time Schedule |
| Solar Panel | |

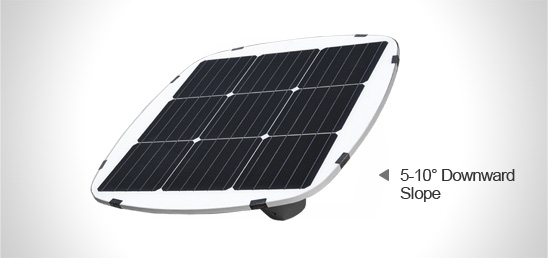

| Power of PV module | 45W |
| Life Span | 80% power after 25 years |
| Storage | |
| Battery Capacity | 275WH |
| Life Span | 4000 Cycles (10 years) |
| Charging Controller | |
| Life Span | >12 years |
| Working Mode | MPPT |
| Control Mode | Intelligent, activated by sunlight |
| Environment | |
| Working Temperature | -15°C to +70°C |
| Water Resistance | IP65 |
| Mechanical Specifications | |
| Recommended Top diameter of the Pole | 60mm |
| Recommended Pole Height | <6m |
| Net Weight | 12.5Kg |
| Package Dimension | 600*600*300mm |
