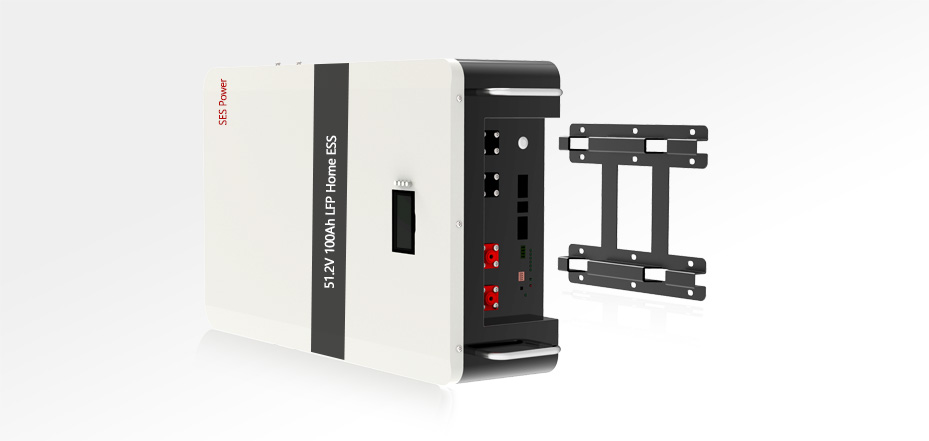

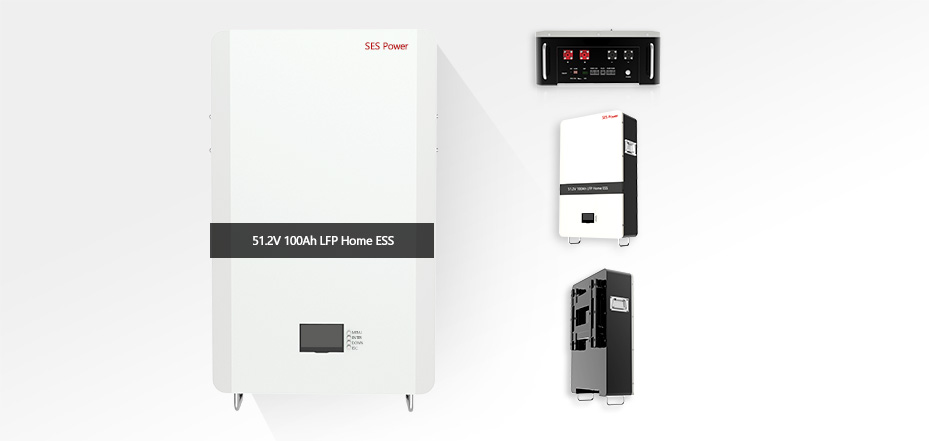

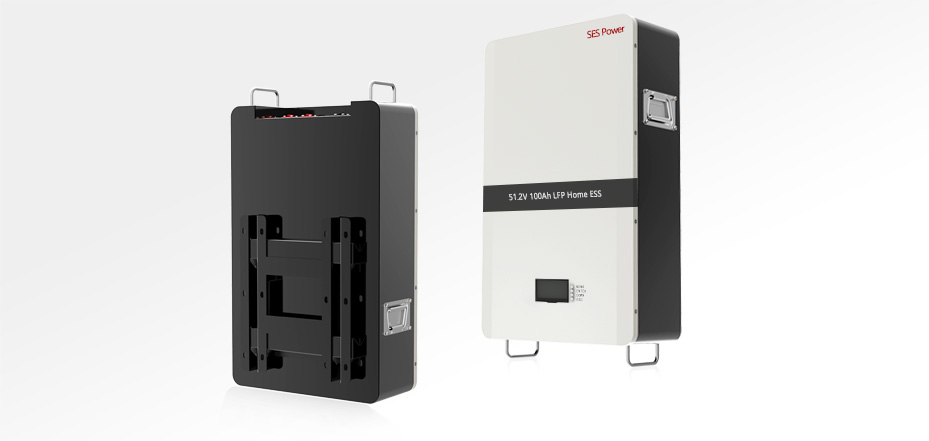

WALL-MOUNTED LITHIUM BATTERY

SPECIFICATIONS

Model No 51.2V-100Ah
Nominal Voltage(V) 51.2V
Nominal Capacity(Ah) 100
Max.Energy(kwh) 5.12
Vcharge-Dischage Current(A) 100
Voltage Window(V) 43.2-58.4
Charge Voltage(V) 56.8-58.4
Dimensions(Height*Width*Depth mm) 640*395*200
Net Weight(Kg) 58
Designed Life 10+years
Cycle Life More than 6000 [email protected]℃ 0.5C 80%DOD
Discharge Temperature ’-20+60℃
Temperature & Period Storage 12 [email protected]~35℃
3 [email protected]~45℃
7 [email protected]~60℃
Communication CAN/RS485/RS232/Dry Contact/ Bluetooth(Optional)
 Certification Standard IEC62619/TUV/UN38.3/ROHS/CE

APPLICATIONS

WALL-MOUNTED LITHIUM BATTERY
WALL-MOUNTED LITHIUM BATTERY
WALL-MOUNTED LITHIUM BATTERY

PARAMETER
