POWERWALL

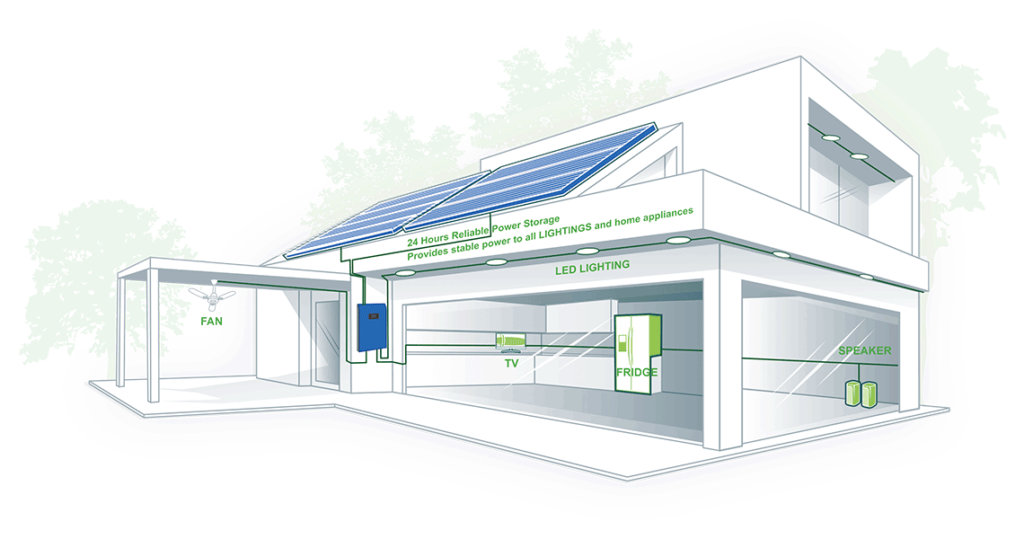

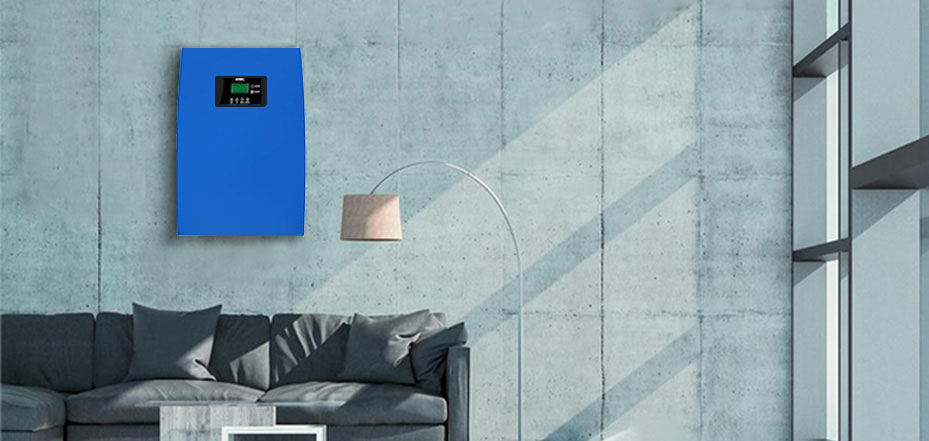

NOMO’s NEW generation solar off grid Home system “POWERWALL” uses high efficiency mono/poly solar panel, in-built LiFePo4 battery, patented MPPT controller, converting the solar energy to electricity power with high efficiency up to 24%, and store it into the energy pack. The Low voltage design ensures safety, easy installation and can be directly hung on the wall. In sunny areas, it can provide power to your entire home, keeping TV, Refrigerator, Air conditioner, lights and other appliances running.

APPLICATIONS

POWERWALL
POWERWALL
POWERWALL

PARAMETER

Mode NO. PW - 160W PW - 260W PW - 320W
Solar Panel
Solar Panel 160W 260W 320W
Storage
Battery Capacity 512WH 768WH 768WH*2
Life Span                                                                         5-8 Years
Charge Time                                                                         8 Hours
Inverter
Rated Input Voltage                                                                        50 (Max)
Rated Input Current 20A 25A 30A
DC Output Voltage                                                                         12V
DC Output Current 15A 20A 25A
Environment

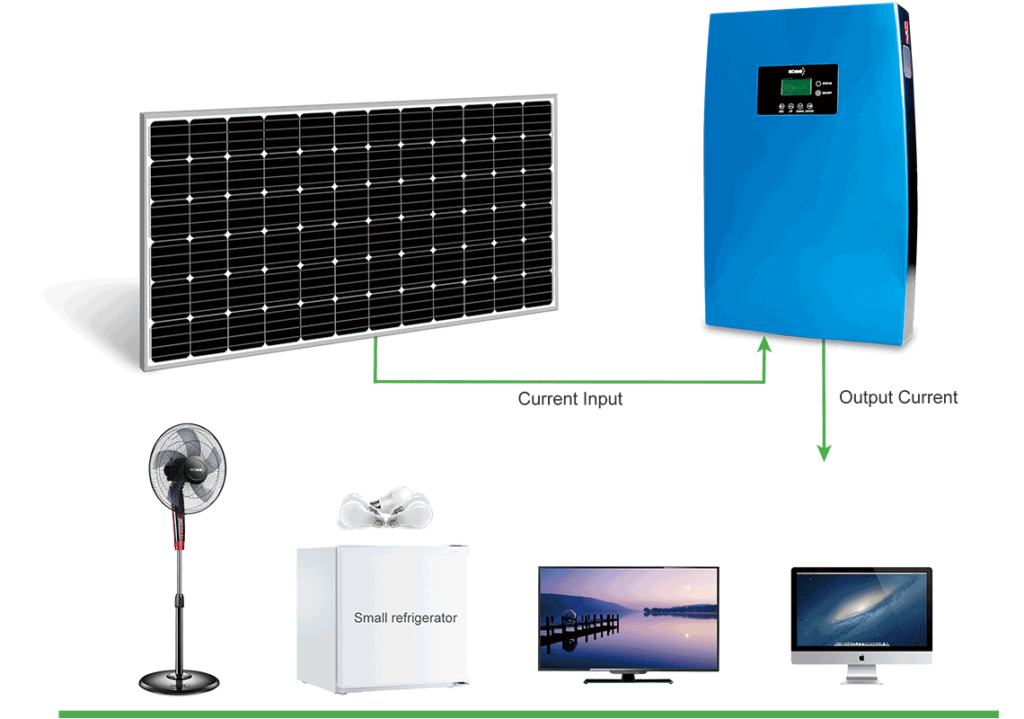

Applications                                                      Fan,TV,LED Bulbs,Small Fridge
Mechanical Specifications
Net Weight 14.5Kg  16.5Kg  33Kg
Package  Dimension 600*410*150mm 600*410*150mm 600*410*150x2mm
