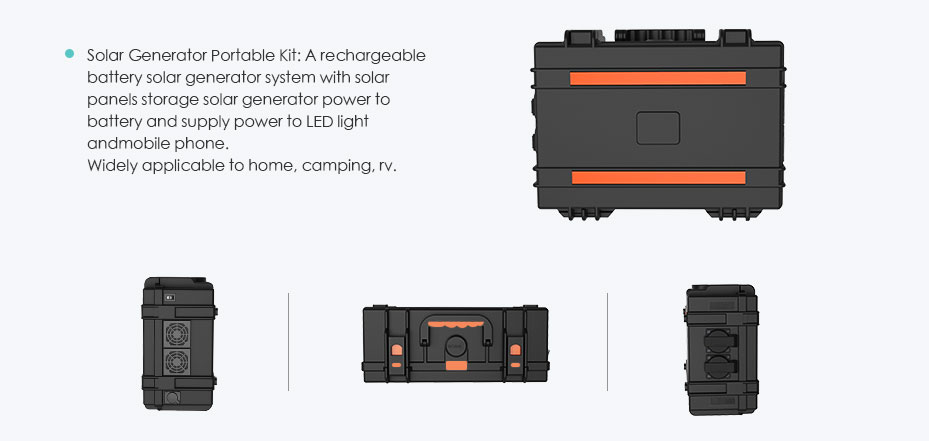

ATOM is a portable solar inverter system, which is easy carring and convinient using. The system could be charged by on-grid power

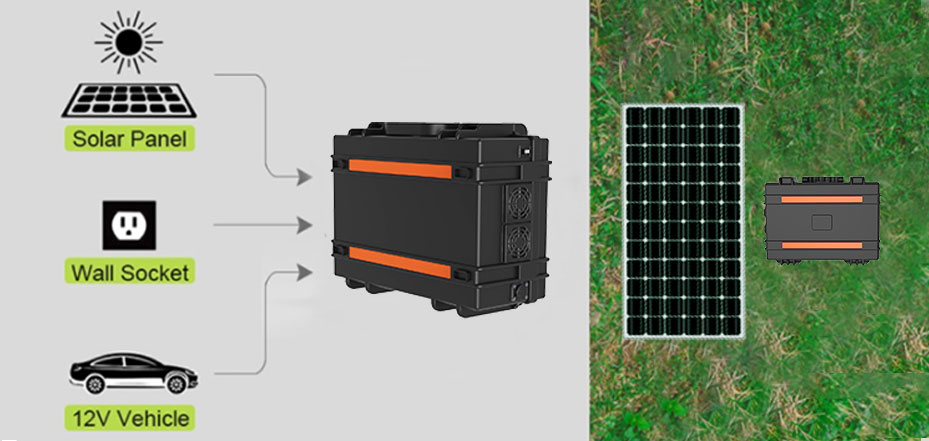

car charger, and solar panel, etc. The loading availible is from 100-240v. ATOM is the best choice for traveling , camping
home and emergency power supply.
| Mode NO. | 830WH | 2200WH | 6200WH |
| Rated Input Voltage | 29.2V | ||
| Rated Input Current | 7A | ||
| AC Output | 1000VA | 1000VA | 2000VA |
| AC Output Current | 15A | ||
| 110V Socket | 2PCS | ||
| Full Voltage | 28.8V | ||
| Low Voltage Protection | 20.8V | ||
| Chargert Power | 203W | 203W | 876W |
| Discharge Capacity | <1C | ||
| Battery Capacity | 830WH | 2200WH | 6200WH |
| Battery Lifetime | 5-8 years | ||
| Charger | 29.2V 7A | 29.2V 7A | 29.2V 30A |
| Packages(LxWxH） | 365*255*141mm | 557*423*205mm | 667*463*272mm |
| Optional | |||
| Net Weight(kg) | 12kg | 35kg | 68kg |
