STORAGE SYSTEM

NOMO Solar Energy Storage System has a modular design. Each module is fully independent.  Which results in easy and quick maintenance. It’s scalable structure facilitates both the Increas in power and back-up time, simply by combining PV modules and battery modules. Widely used in Household and Industrial Areas.

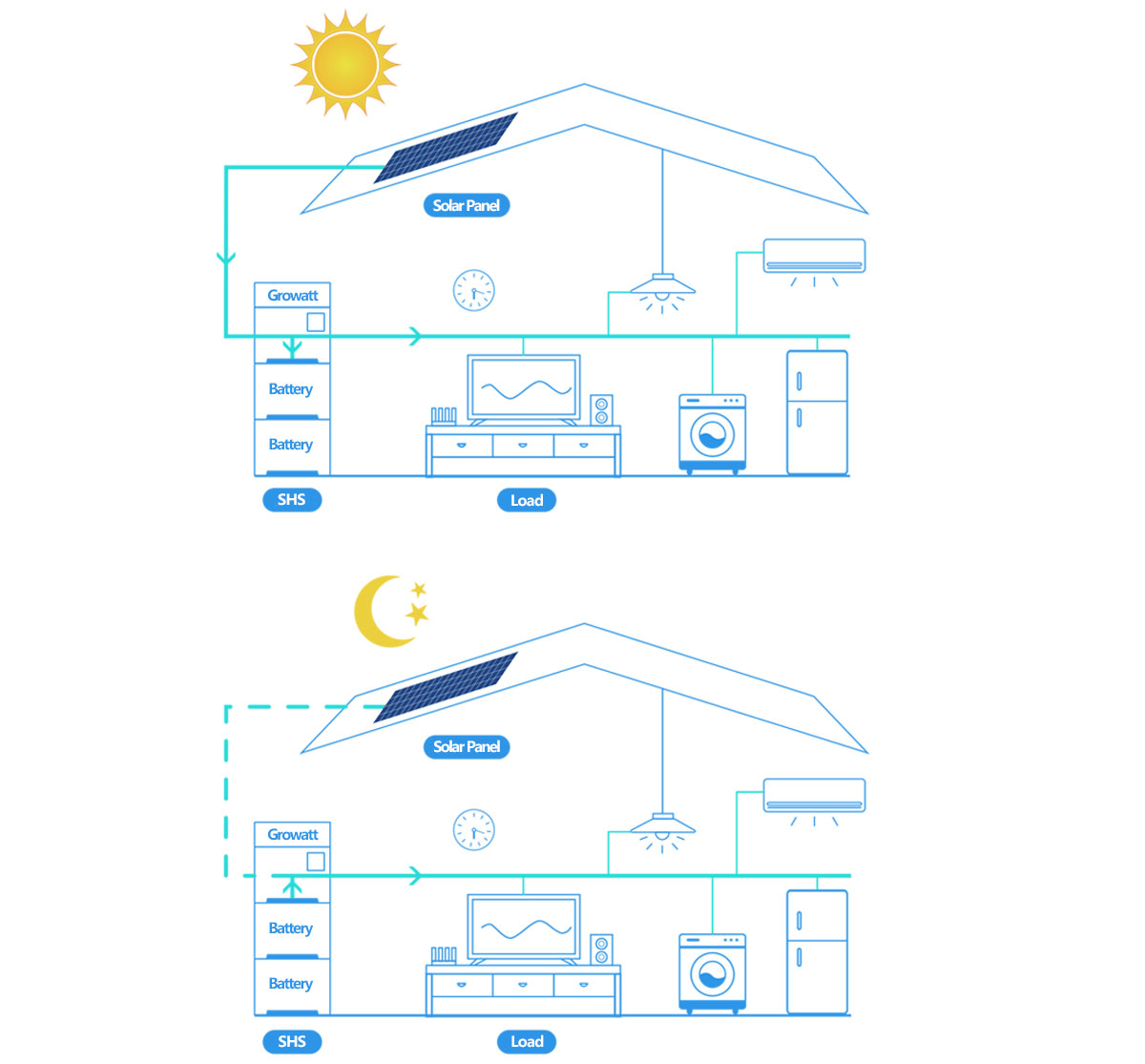

APPLICATIONS

STORAGE SYSTEM
STORAGE SYSTEM

PARAMETER



Mode NO. Solar Energy Storage System
Solar Panel
Solar Panel 300Wx12pcs
Storage
Rated Voltage 51.2V
Rated Capacity 300Ah
Rated Energy 15.6KWH
Battery Type LIFEPO4 Battery
Battery Configuration 5.2KWH 5U Pack*3 Parallel
Battery Operation Temperature Range at Charging 0-45°
Charging Controller
Max Charge Voltage 56.8±0.4V
Rated Charge Voltage 56.0±0.4V
Allowed MAX Charge Current 100A
Output Voltage 110V/240V
Output Power 3KW/5KW(Customized)
Output Frequency 50/60Hz
Environment
Applications Fan,TV,LED Bulbs,Fridge,Air conditioners
Mechanical Specifications
Net Weight(kg) 139
Package Dimension(mm) 600*600*1650
